146 Chapter 3
Parts List
Hardware

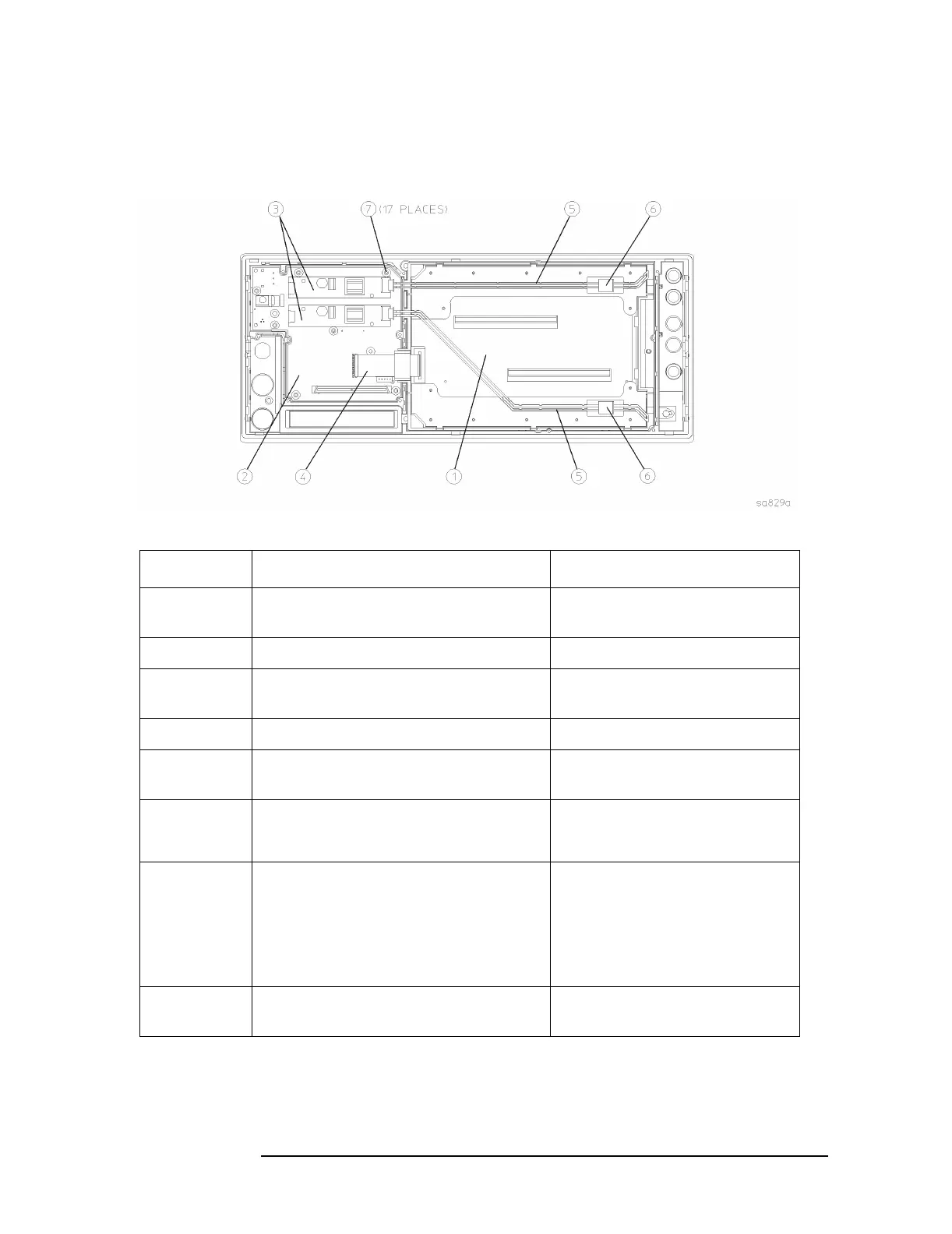

Figure 3-5 Front Panel Assemblies
(Instruments with Serial Prefix US/MY4402 & below)
Item Description Agilent Part Number
1 A26 Display Shield Board
(with EMC gaskets
E4406-60052
EMC gaskets for Display Shield Board 8160-0968
2 A3 Front Panel Interface Assembly
(includes inverter boards)
E4406-63199(Prefix
US4004/MY0000 & above)
3 Inverter Boards 0950-3379
4 W6 Cable, Flat Flex
Flat Panel Interface
8120-8480
5 Backlight Extension Cable Top (235 mm) 8120-8460
Bottom (264 mm) 8120-8459
6 Backlight
For use with display 2090-0396
(VB02 display):
For use with display 2090-0576
(VB01 display):
0960-1314
2090-0365
7 Screw M3x0.5 8mm-LG
(Crest Washer-Pan Head-TORX)
0515-0372
To Next Page
