Parts List
Hardware

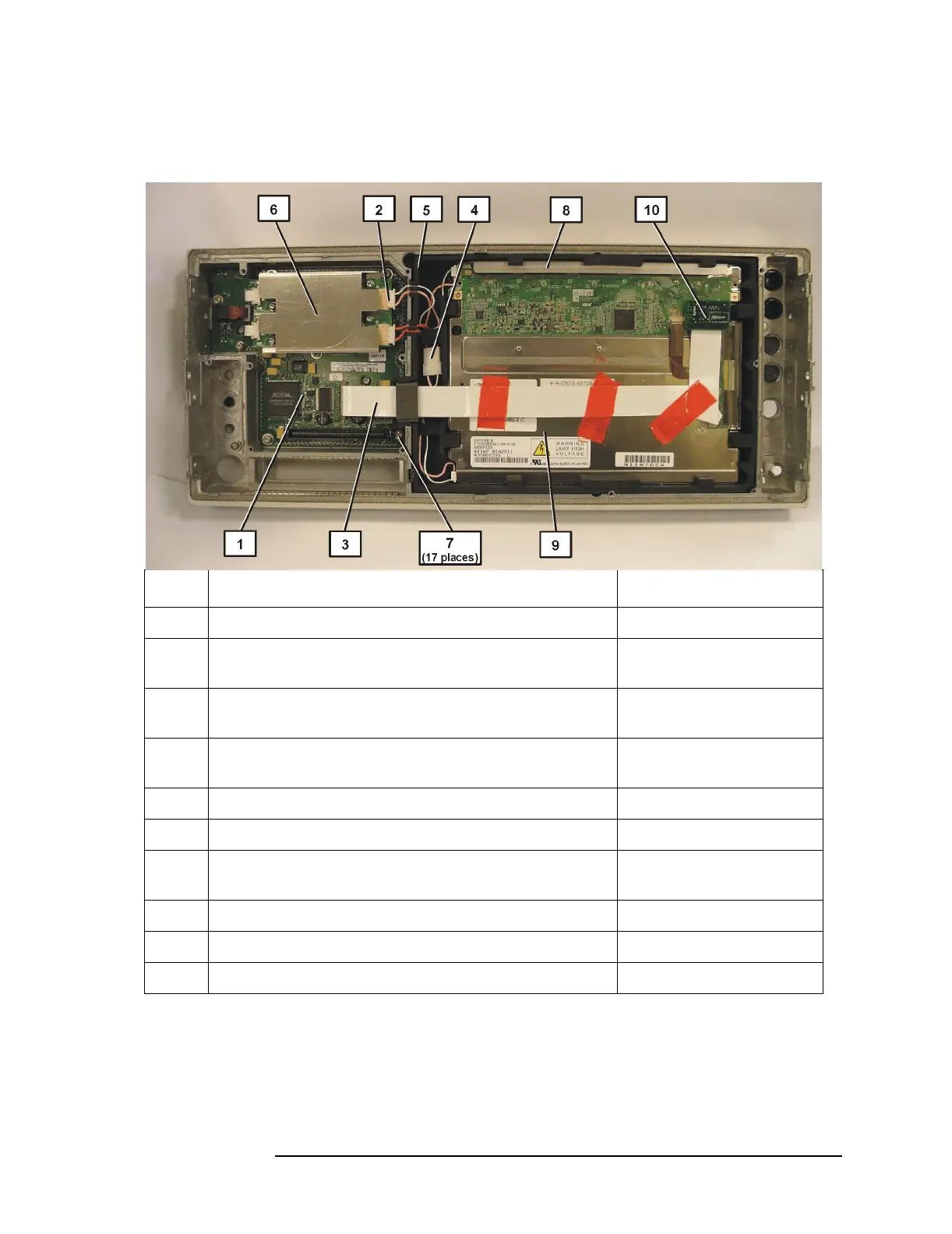

Figure 3-6 Front Panel Assemblies
(Instruments with Serial Prefix US/MY 46xx & above)
Item Description Agilent Part Number
1 A3 Front Panel Interface E4440-63199
2Inverter Boards
(under Inverter Shield)
0950-3379
3 W6 Cable Flat flex, Front Panel Interface to display
converter board
8120-1419
4 W27 Cable, backlight extension 8121-1420
5 Display Mount E4406-40013
6 Shield, Inverter Board E4440-00068
7 Screw M3x0.5 8mm-LG
(Crest Washer-Pan Head-TORX)
0515-0372
8 Display Protector Pressure Plate E4406-00037
9 A2 Flat Panel Display 2090-0897
10 A2A1 Display Converter Board E4440-63265
