Agilent Technologies E4406A VSA Series Service Guide

46 Chapter 1
Troubleshooting
Isolating an RF, Analog IF, Digital IF, Reference, Synthesizer, or CPU Problem

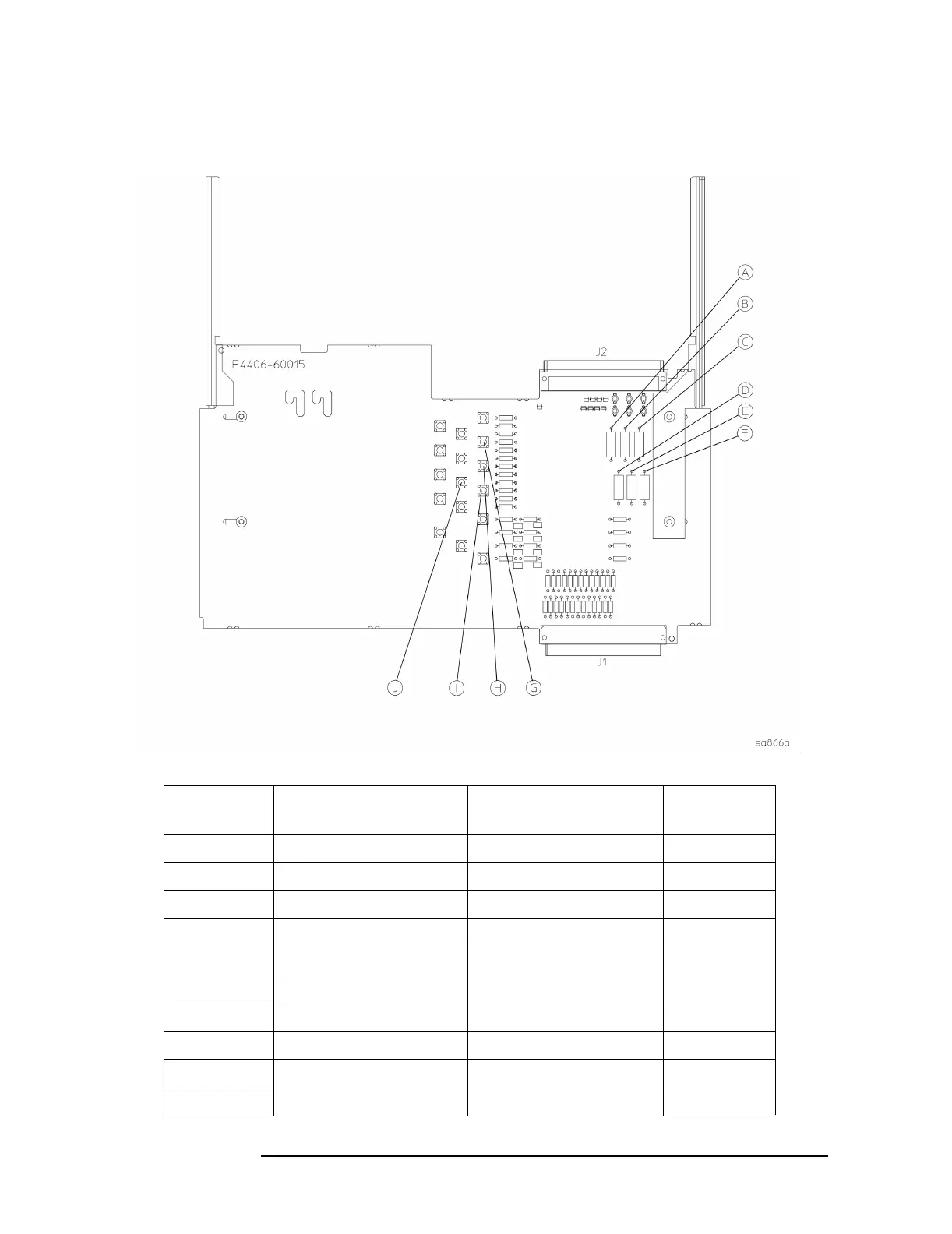

Figure 1-9 E4406-60015 Extender Measurement Locations
Measurement
Location
Signal Description Test Equipment Used Expected
Level
A power supply DVM +5.2 VDC
Bpower supply DVM−5.2 VDC
Cpower supply DVM +15 VDC
Dpower supply DVM −15 VDC
Epower supply DVM +9 VDC
Fpower supply DVM +32 VDC
G Gate Arm DVM +3.7 VDC
H Gate Trig DVM +3.7 VDC
I Sweep Arm DVM +3.7 VDC
J Sweep Trig DVM +3.7 VDC
