User Guide
9
INPUTS

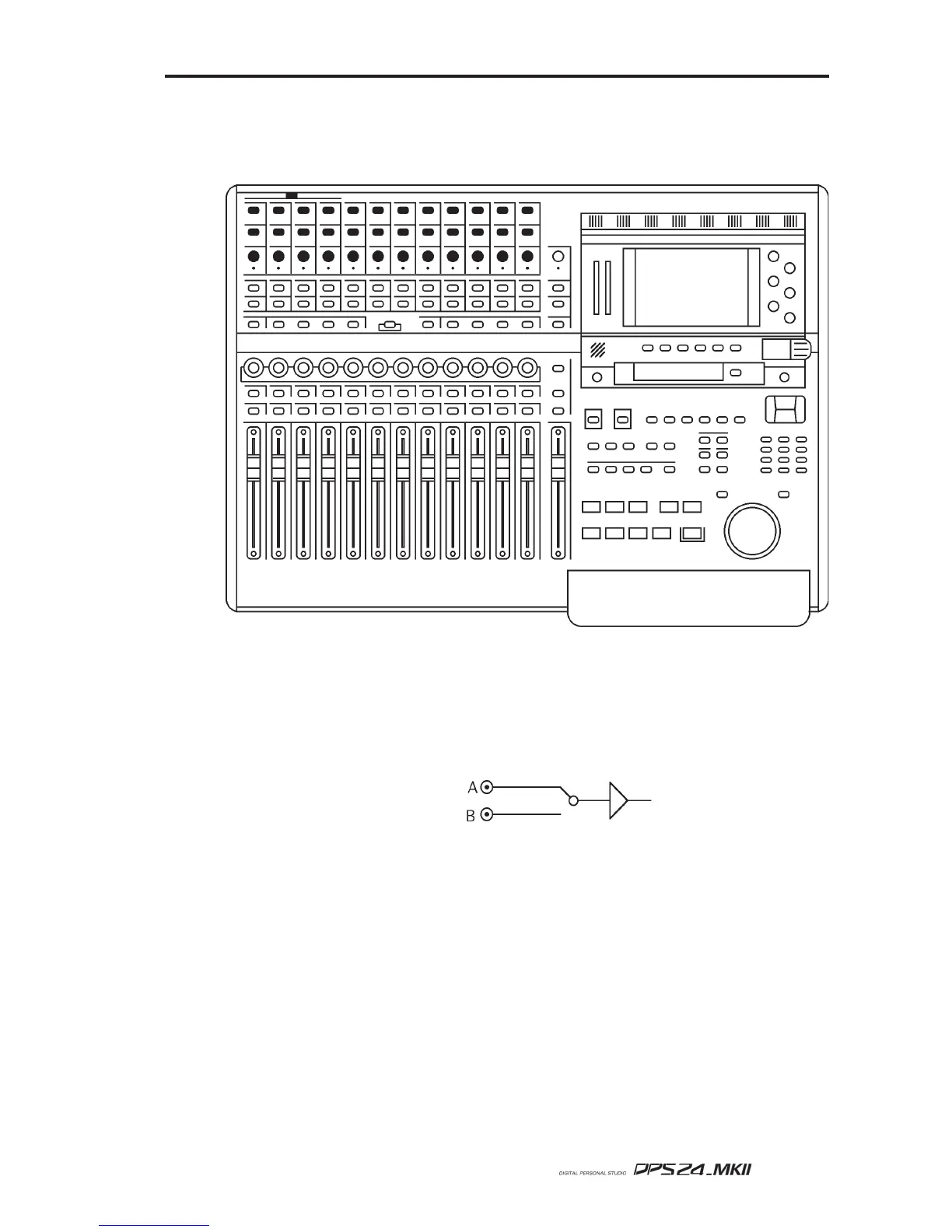

Across the top of the panel are controls associated with the twelve analog input preamps.
The functions are:
48V ON/OFF Switches on 48 volt phantom power to Inputs A 1-4 allowing these chan-
nels to be used with condenser mics.
A/B The switches running along the top switch between Input A or B.
(A is the XLR combo, B is the 1/4" jack)
LINE/MIC The next row of switches set the input (TRIM) sensitivity between line (-
15dB <> +45dB) and mic (0dB <> +60dB).
TRIM This pot allows you set the input channel's initial gain according to the
setting of the LINE/MIC switch.
SIG/CLIP This tri-coloured LED shows the level of the input signal after the input
pre-amp. It illuminates as follows:
-60dB or less OFF
-60dB -> -3dB GREEN
-3dB YELLOW
0dB RED (clip)
INPUTS
