User Guide
21
MONITOR SECTION

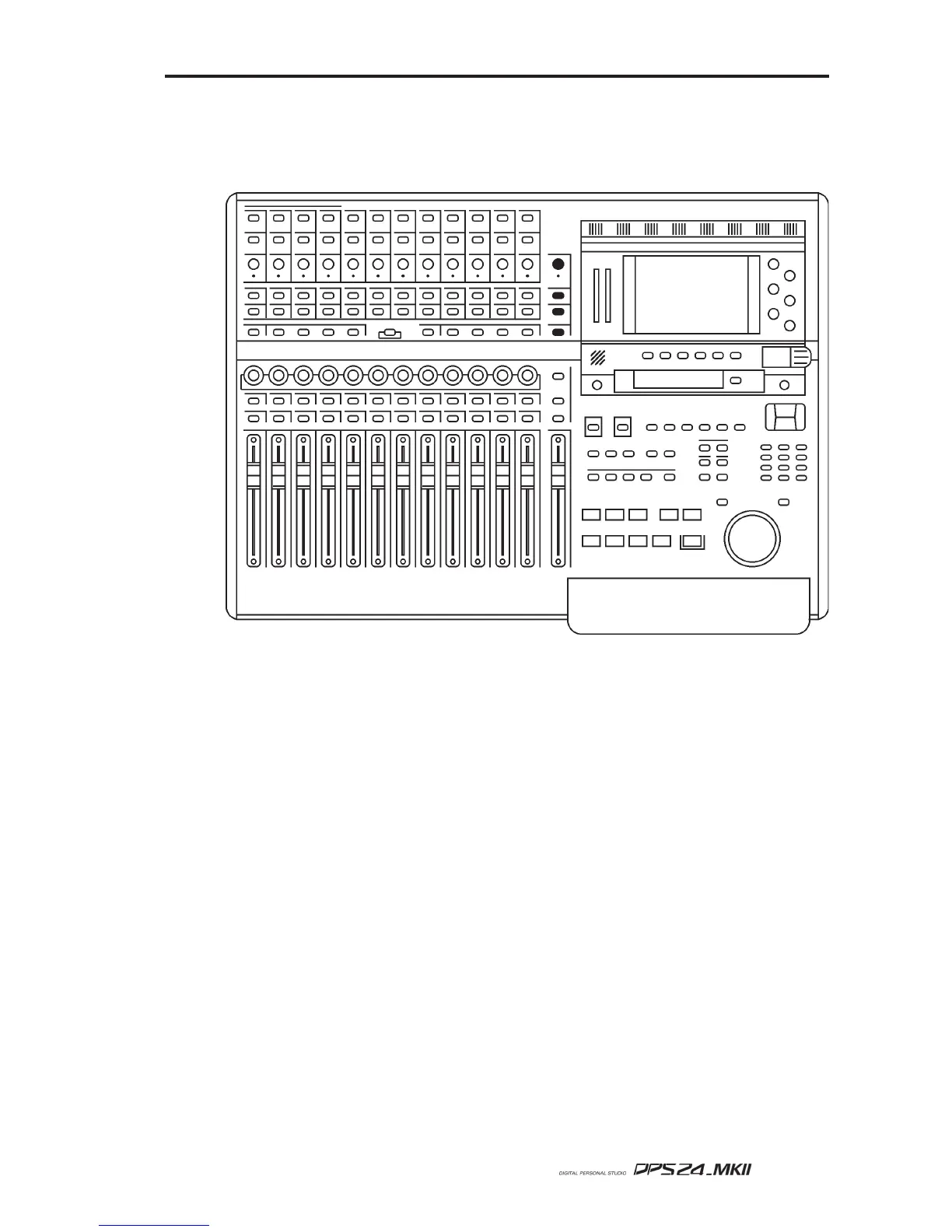

Directly above the MASTER section is the MONITOR section:
The functions are (from top to bottom):
MONITOR LEVEL Sets the level of the signal appearing at the MAIN or NEARFIELD
monitor outputs.
!!! SOLO !!! This LED flashes whenever a channel is solo'd.
Although the channel's ON key flashes when it is solo'd making it
perfectly obvious which channel is being solo'd, it is possible that a
different FADER BANK may be selected and so the solo'd channel
may not be visible (for example, Input 5 may be solo'd but the current
FADER BANK might be, say, Tracks 1-12). As a result, it may not be
clear that a channel is solo'd. This 'master' SOLO LED helps over-
come this by showing that a channel somewhere is solo'd.
2-TRACK This switches the 2-TRACK input into the main monitor output, over-
riding the main L/R mix. Normally, this will be used to check the
output of an external stereo recorder/player. However, the 2-TRACK
switch exists only on the monitor output and it does not affect the
master stereo L/R output.
By default, the stereo 2-TRACK input is the source for this, but it is
also possible to route the stereo AUX IN or the stereo DIGITAL IN
instead in the SETUP mode.
MONITOR SECTION
