FX Return Channels
FX/Aux return channels have an extra control which allows you to choose how you would
like the FX return signal to be routed to the surround bus.

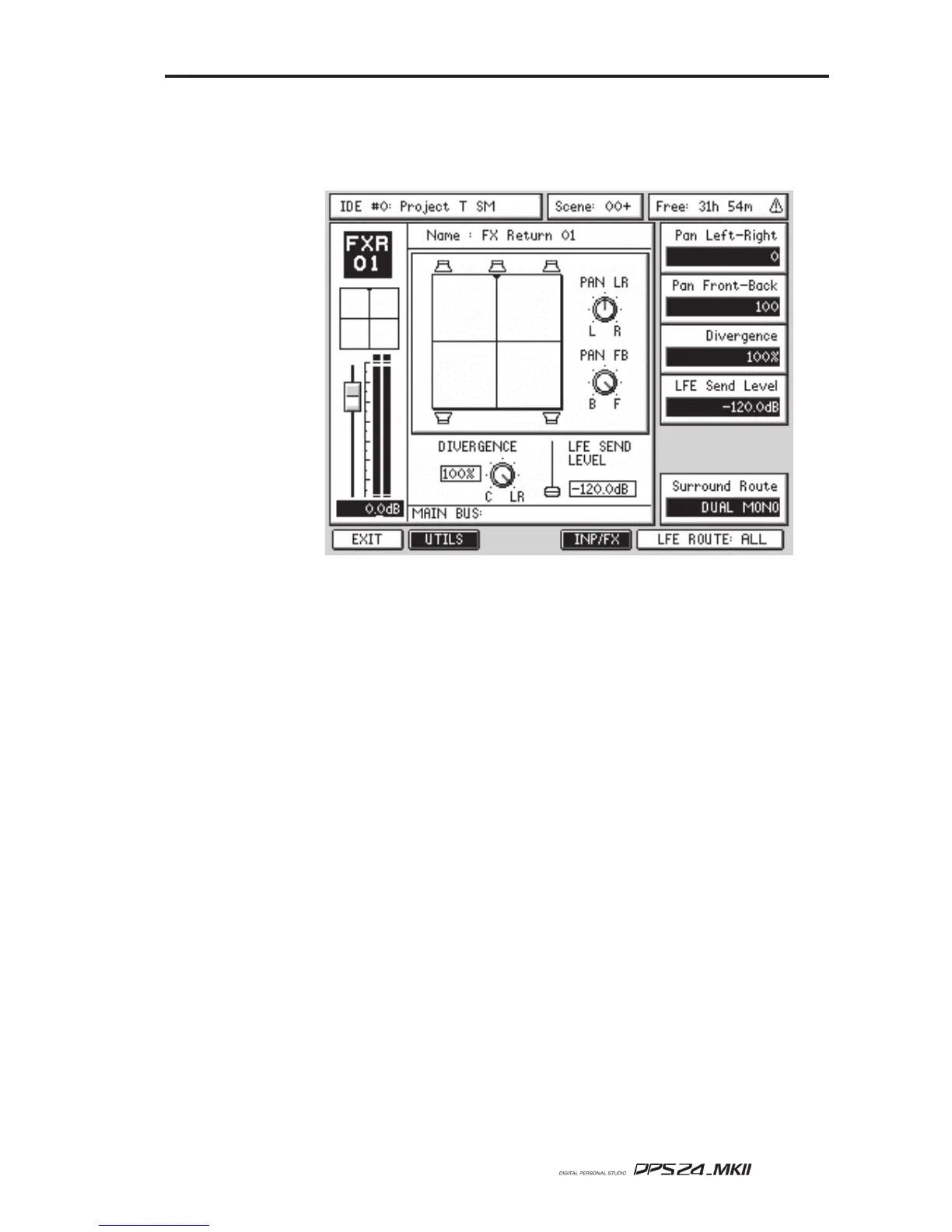

The Surround Route [Q6] control has four states:
STEREO: FX Return Channel routed as a stereo source to all surround bus
components except Center.
Left leg is routed to Front Left, Rear Left and LFE;
Right leg is routed to Front Right, Rear Right and LFE.
Divergence is disabled.
Pan Left-Right acts as a stereo balance control.
DUAL MONO: Each leg of FX Return Channel routed as a mono source to all sur-
round bus components.
All Pan controls active – same as panning a mono source.
This setting is useful for panning Mono effects.
FRONT LR ONLY:
FX Return Channel routed as a stereo source to Front Left and
Right components of the surround bus only.
Left leg is routed to Front Left;
Right leg is routed to Front Right.
Divergence and Pan Front-Back are disabled.
Pan Left-Right acts as a stereo balance control.
REAR LR ONLY:
FX Return Channel routed as a stereo source to Rear Left and
Right components of the surround bus only.
Left leg is routed to Rear Left;
Right leg is routed to Rear Right.
Divergence and Pan Front-Back are disabled.
Pan Left-Right acts as a stereo balance control.
