Installation of Options - To Service Technicians

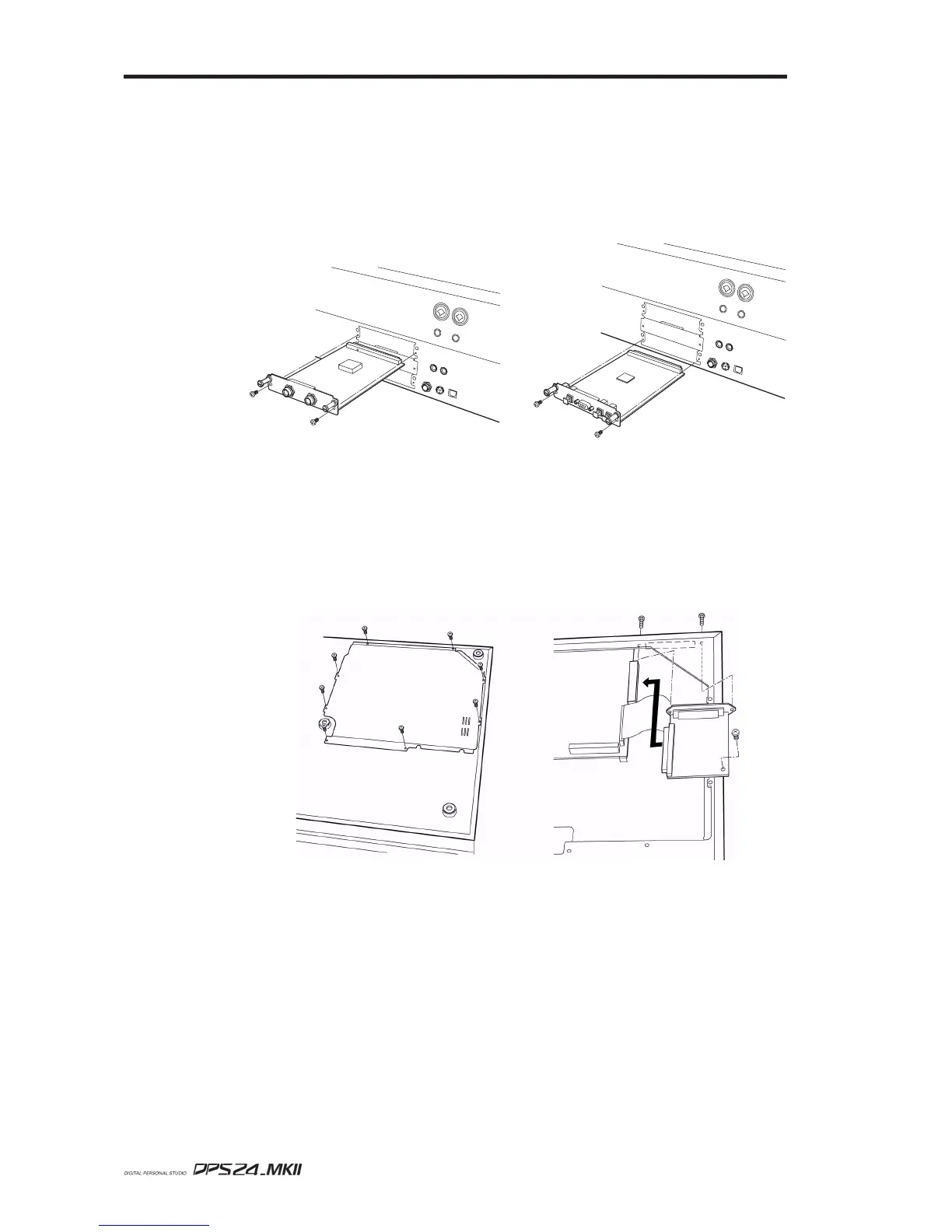

IB-24LTC/IB-24ADT
1. Remove the screws for the cover of expansion slot and remove the cover. Save the screws.
2.
Slide the Option Board in along the guide groove and press it firmly to ensure secure connection.
3. Tighten the screws back that have been removed in the previous step.
IB-24SCSI
1. From the bottom of the unit, remove the screws for the bottom cover and open the bottom.
2. Remove the screws for the cover of SCSI option slot on the Rear Panel and remove the
cover. Save the screws.
3. Place the board as illustrated, making sure that connectors are securely connected.
4. Mount the board with the screw included in the option board and with those screws re-
moved previously.
5. Place the bottom cover back and tighten all screws.
