29
User Guide
To edit the value you can.....
• Enter a number directly using the numeric keypad, followed by ENTER
• Use the numeric keypad's +/- keys to nudge values
• Use the Q6 as a typical DATA ENTRY encoder
In this example, however, you would probably prefer to use the Q-CHANNEL function to
set the functions shown.
Some pages, however, have quite a lot of fields and unfortunately, there is no option but to
cursor around them with the cursor keys or Q5, and use the numeric keypad's DATA +/-

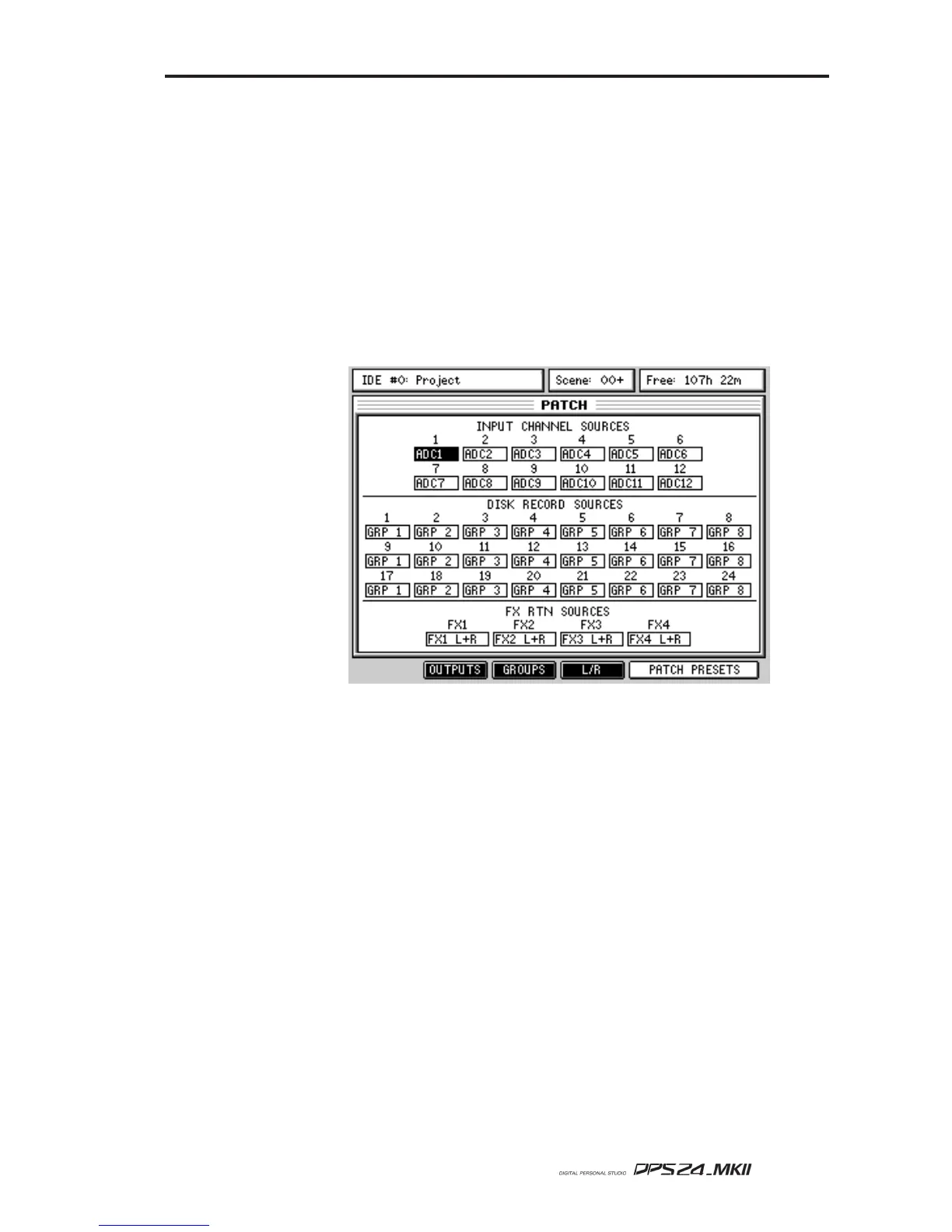

keys or Q6 to set values. An example of this would be the PATCH pages:
However, there are not that many pages like this and also, these are the kind of pages which,
once set, do not require constant usage after that. For the most part, parameters are set using
dedicated controls in the form of either the Q-LINK controls, the Q-STRIP/CHANNEL en-
coders of dedicated control surface switches.
MOVING AROUND THE LCD
To Next Page
