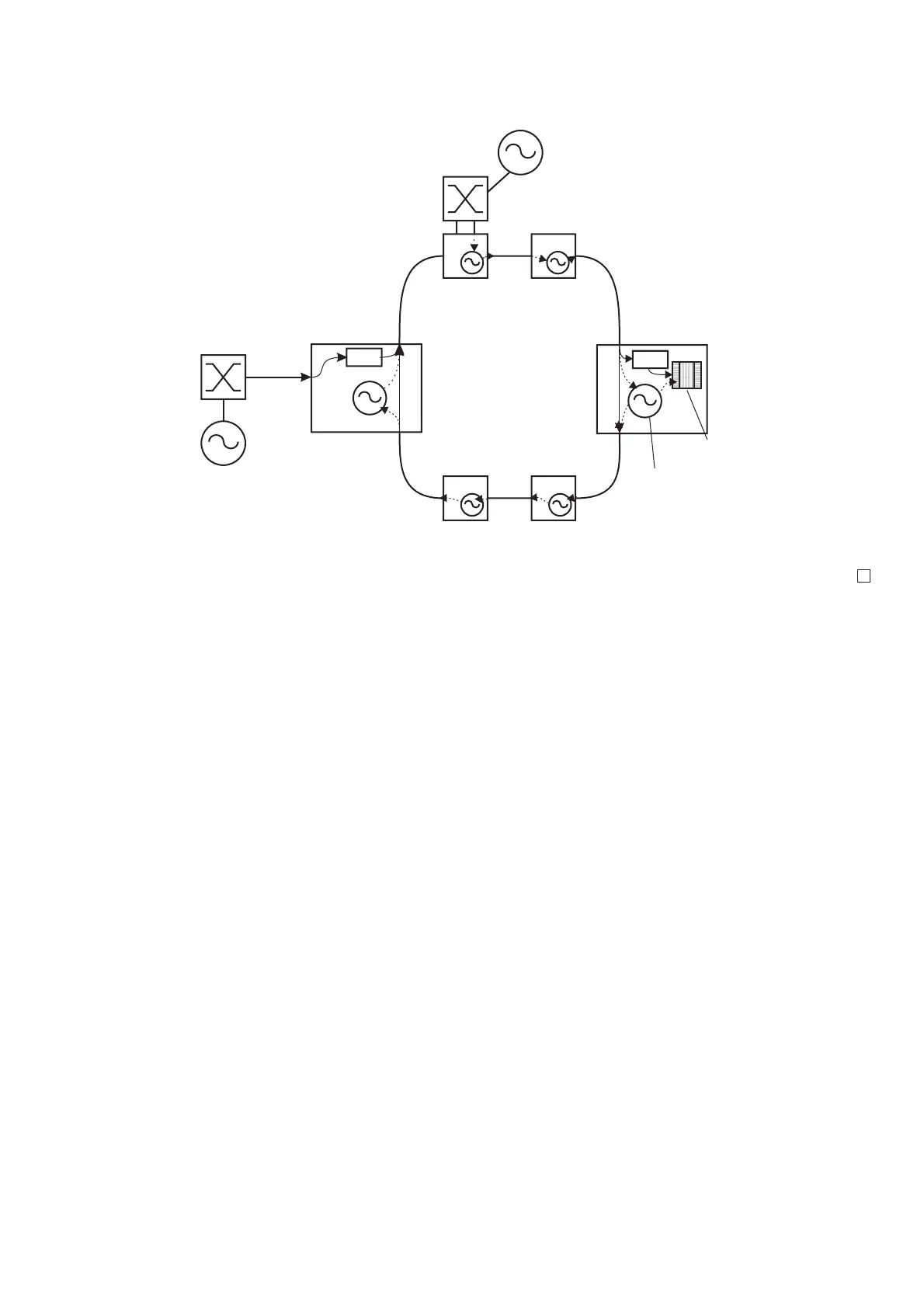

2Mbit/s
VC-12
VC-12
PRC
2Mbit/s
SDH Network,
synchronized to the PRC
Original 2 Mbit/s
clock
Node where the 2 Mbit/s
signal leaves the
SDH network
Internal clock
Elastic store
2Mbit/s
Entering node
Timing provisioning Re-timing
....................................................................................................................................................................................................................................
