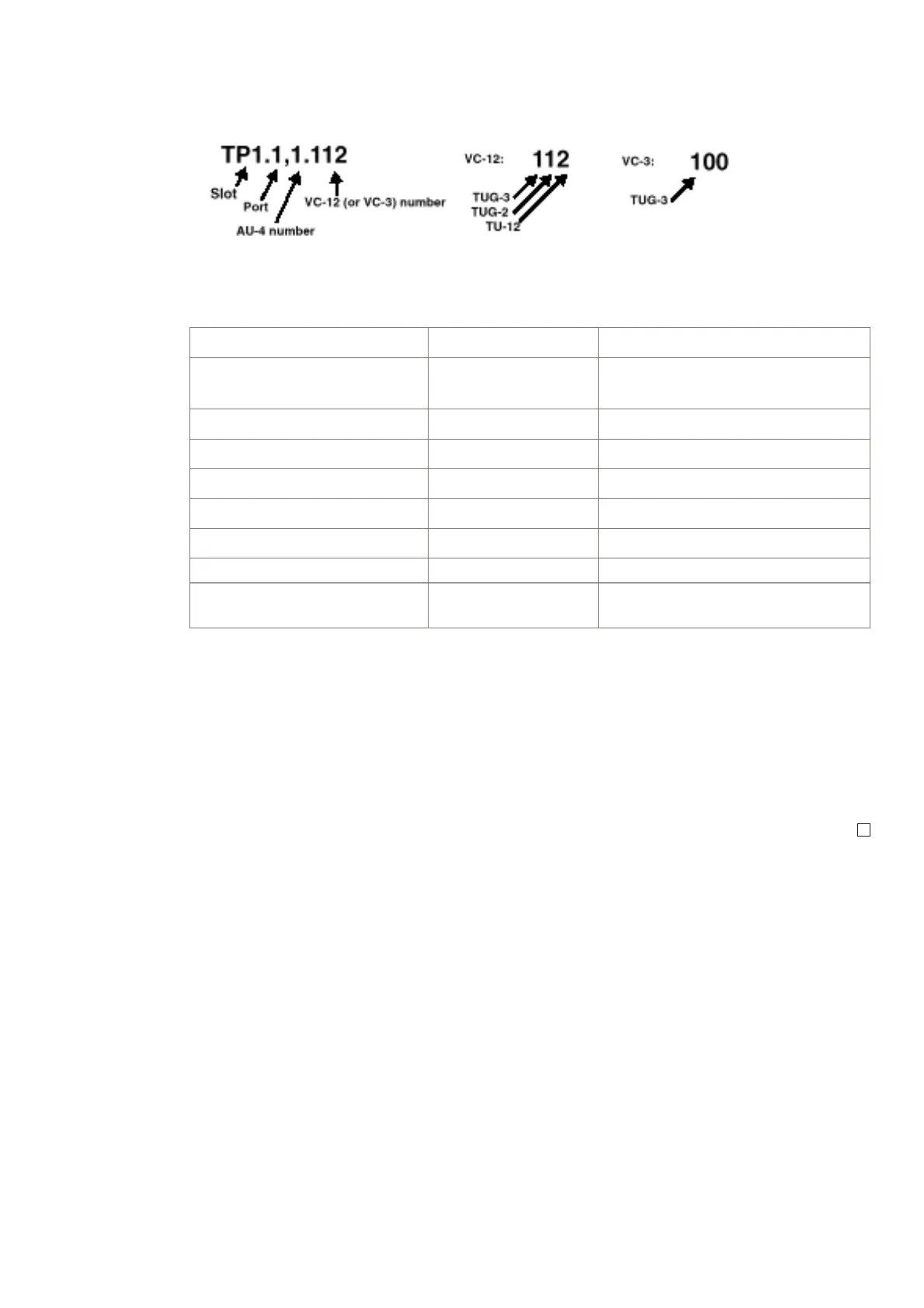

The following table shows the names of the termination points.
Unit TP Type TP name
Line 1 and Line 2 (STM-1
or STM-4)
TU-12/TU-3 LP1.1,1.[klm] and LP2.1,1.[klm]
Tributary 1 (2 Mbit/s) VC-12 TP1.1 - TP1.16
Tributary 2 (1.5 Mbit/s) VC-11 TP2.1 — TP2.16
Tributary 2 (2 Mbit/s) VC-12 TP2.1 - TP2.16
Tributary 2 (34/45 Mbit/s) VC-3 TP2.1 - TP2.2
Tributary 2 (X.21) VC-12 TP2.1 ... TP2.4
Tributary 2 (Ethernet) VC-12/ VC3 LAN2.1 ... LAN2.4
Tributary 2 (STM-1) VC-4 TP2.1 — TP2.2
Alarms
The cross connections can only be created at one network element at the same time. If
the termination points are monitored this will cause the following alarms:
VC-4/VC3/VC12 unequipped and TU3/TU12 Loss Of Pointer. Therefore first provision
the complete transmission path and then set the ports and termination points to
monitored.
Traffic provisioning
Cross Connections
....................................................................................................................................................................................................................................
