Ethernet multipoint transport with shared bandwidth

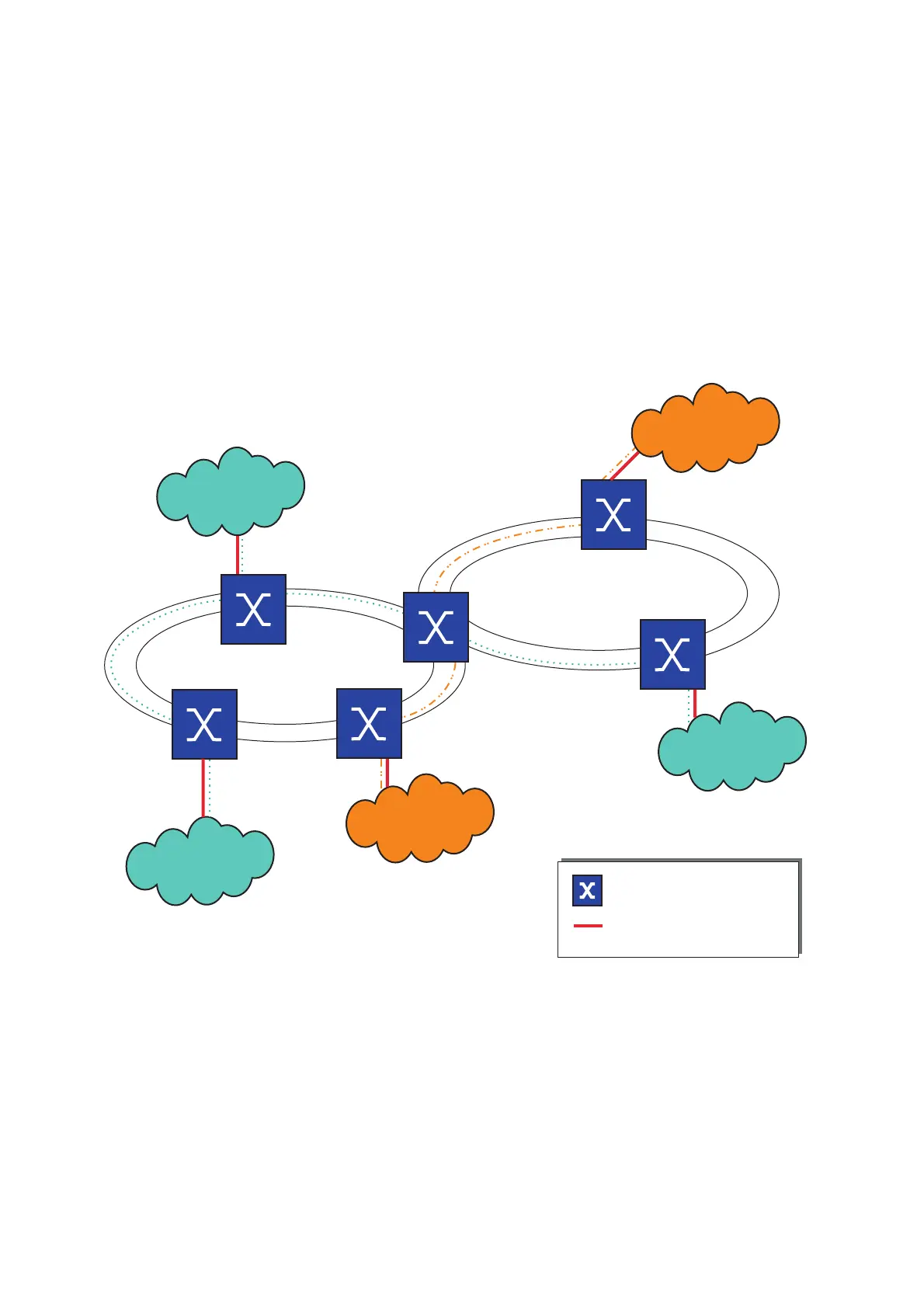

The following figure shows a network example of a multipoint Ethernet over SDH
network with shared bandwidth:
The SDH capacity is shared among more than one customer in this multipoint network.
This allows customer A to use the complete SDH bandwidth at the moment that
customer B is inactive, and vice versa. As Ethernet traffic is inherently bursty, sharing
bandwidth can increase the efficiency of the network usage.
Isolation of the traffic of different end-users can be accomplished by using transparent
tagging or VLAN tagging (see “Tagging modes” (p. 8-68)), depending on the desired
mode of operation.
TransLAN equipment
STM-N ring
STM-N ring
Ethernet connection
LAN
(customer A)
LAN
(customer A)
LAN
(customer A)
LAN
(customer B)
LAN
(customer B)
Traffic provisioning
