Allen-Bradley 20F Installation Instructions

126 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

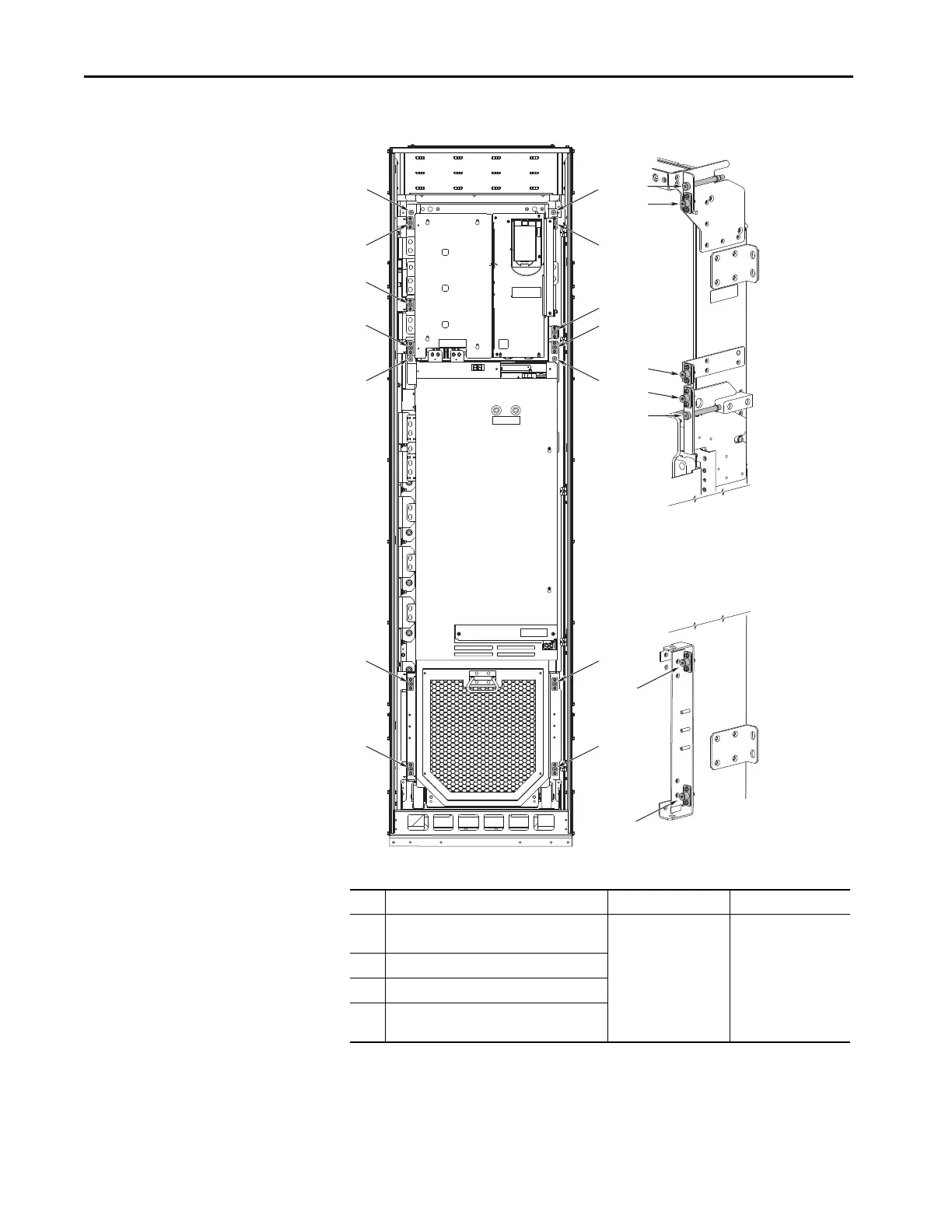

Figure 89 - Drive-to-cabinet Connections
No. Description Torque, N•m (lb•in) Recommended Tool
5 Converter-to-vent hood anchor bolts (two
places).
11.3 (100) 5 mm hex key (Allen)
6 Converter-to-cabinet anchor bolts (four places).
7 Inverter-to-cabinet anchor bolts (six places).
8 Inverter-to-converter connector bolts (two
places).
5
6
6
7
7
7
7
7
7
7
8
8
8
7
7
6
6
6
6
5
5
AC Input Drive Shown
