44
Rockwell Automation Publ
ication 750-IN001P-EN-P -
April 2017
Chapt
er 3
Lift and Moun
t the Drive
Enclosure Codes B and L
F
ollow t
hese g
uidelines for dr
ives w
ith e
nclosu
re code B and
L.

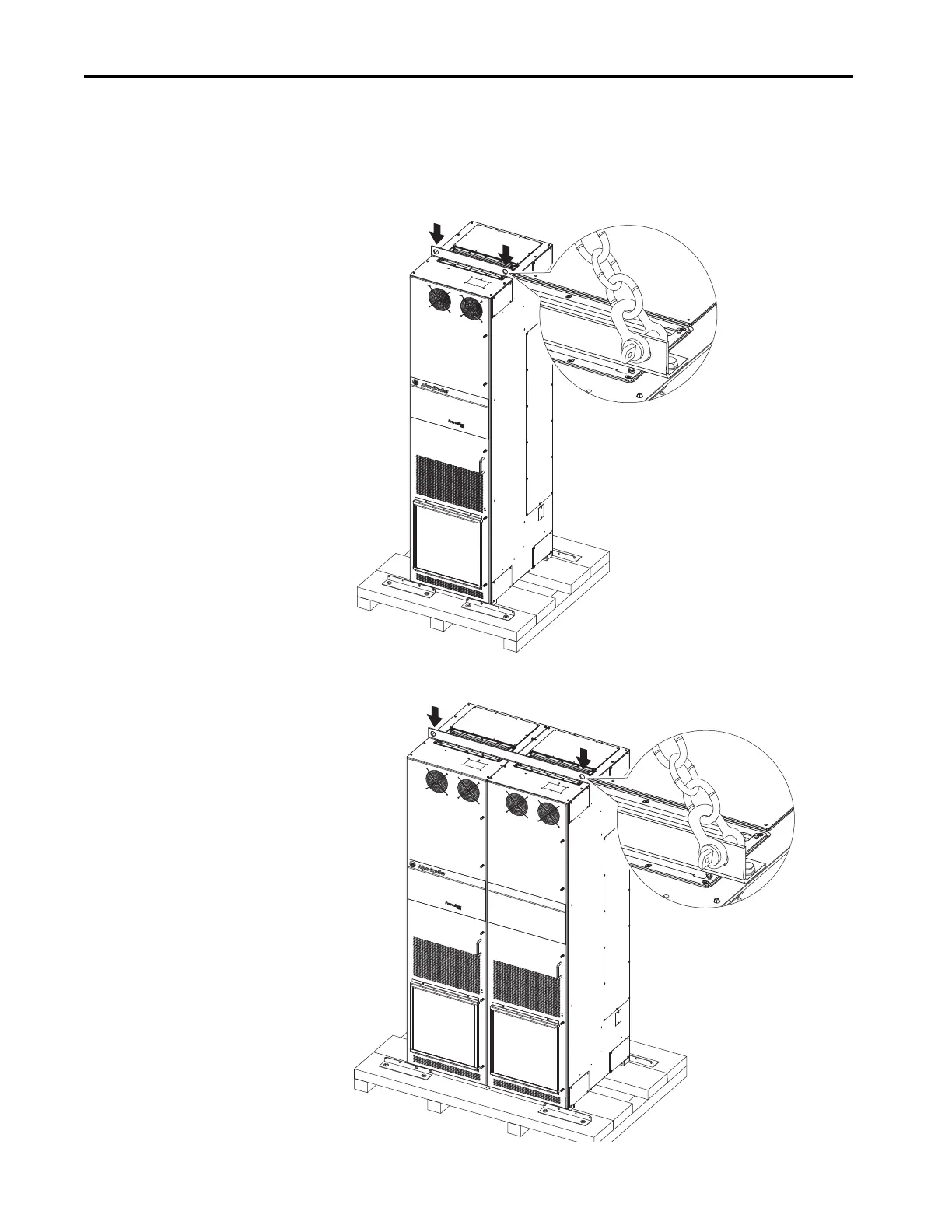

Figure 20 - F
loor Mount Frame 8 Lifting
Points –
Tw
o Places
Figure 21 - F
loor Mount Frames 9 and 10
Lifting Points
– T
wo Places
