Allen-Bradley 20F Installation Instructions

28 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 2 Prepare for Installation
Access Panels, Covers, and
Doors
This section provides descriptions for how to remove and replace access panels,
covers, and doors on different drive sizes and enclosures.

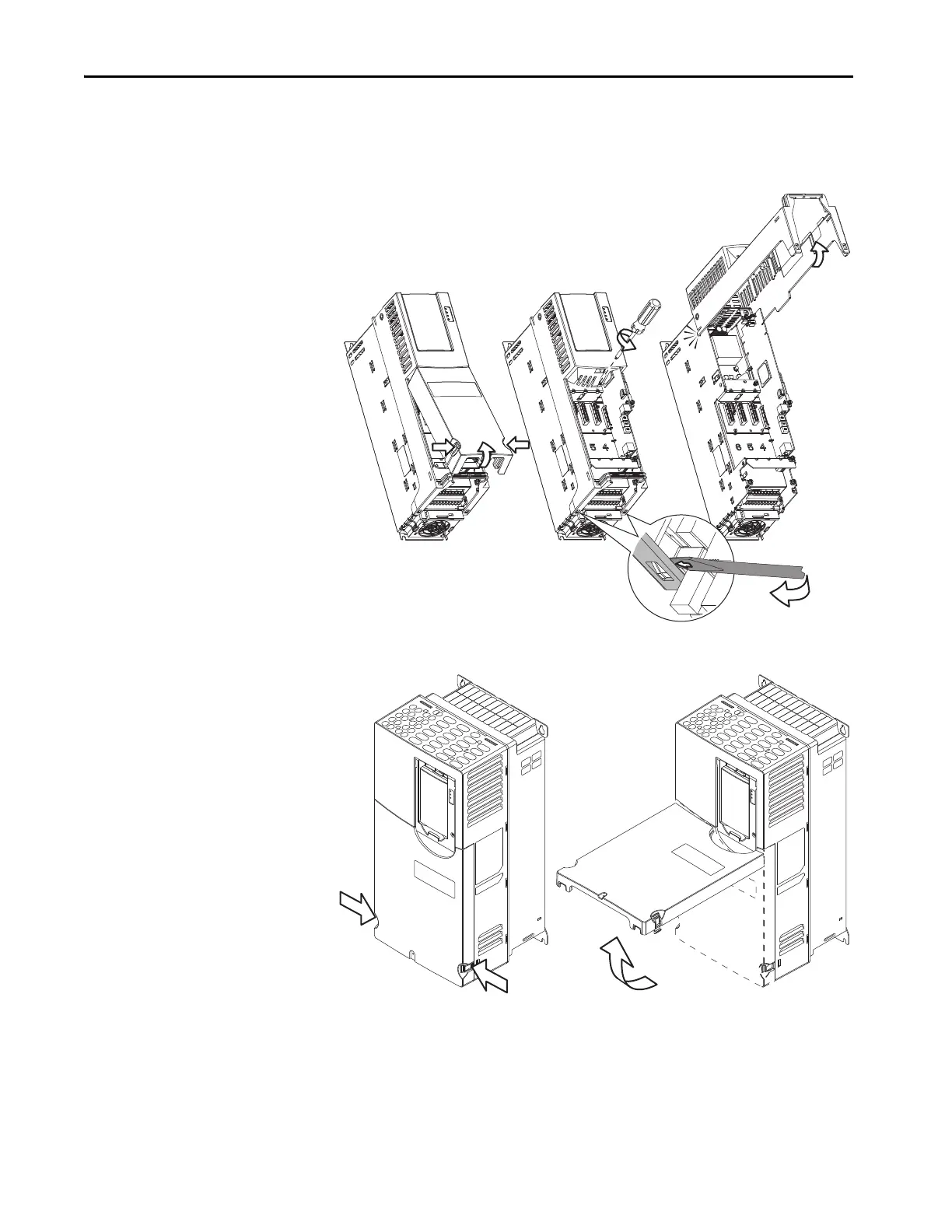

Figure 1 - Enclosure Code R (IP20, NEMA/UL Open Type) Wall Mount, Frame 1
Figure 2 - Enclosure Code N (IP20, NEMA/UL Open Type) Wall Mount, Frames 2…5
