Rockwell Automation Publication 750-IN001P-EN-P - April 2017 147
Lift and Mount the Drive Chapter 3
Drive Assembly – Floor Mount Frames 8…10

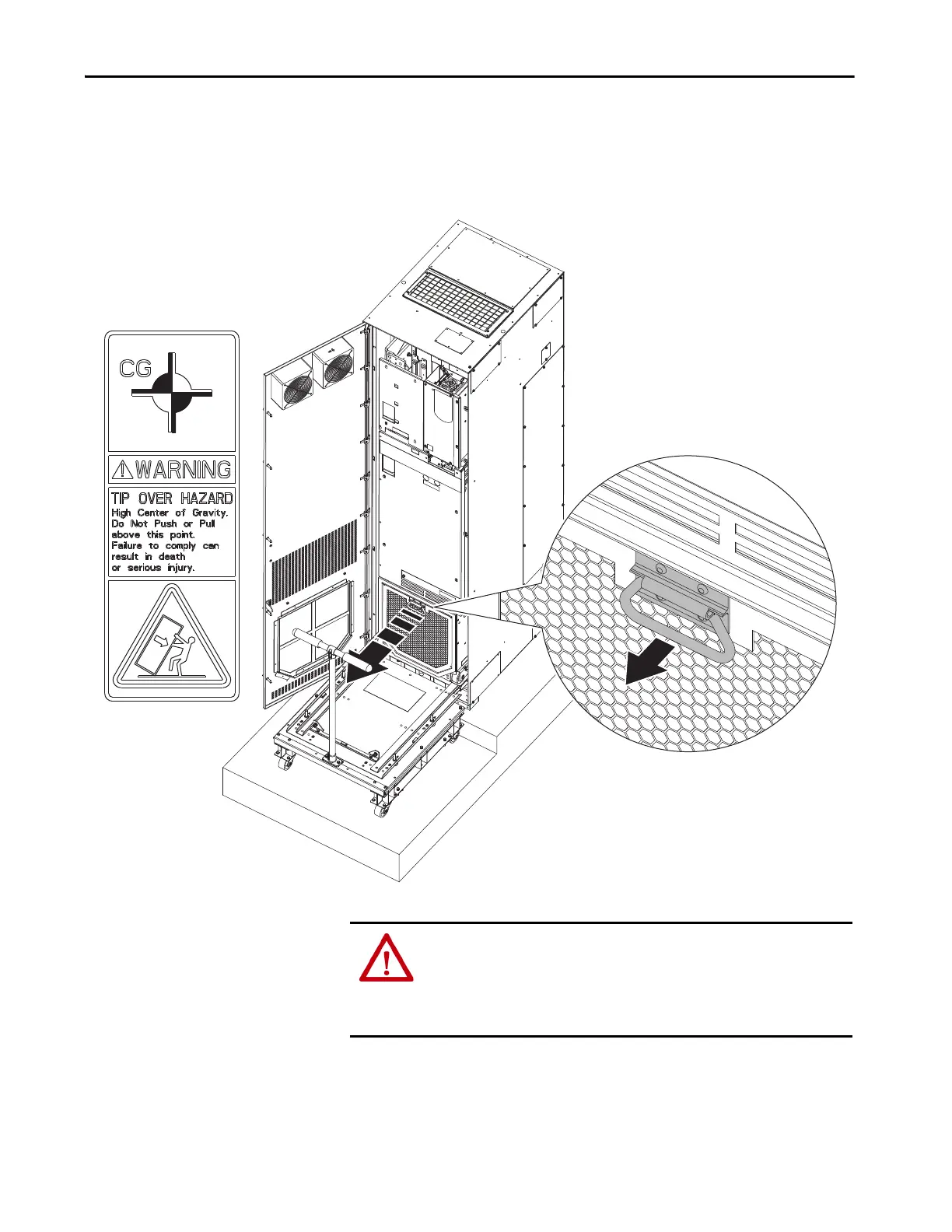

To pull the drive assembly on to the roll-out cart, slowly and smoothly pull the
handle above the fan intake.
ATTENTION: This drive has a high center of gravity and a tip-over hazard
exists. To guard against death, serious personal injury, and/or equipment
damage, do not subject the drive to high rates of acceleration or
deceleration while transporting. Do not push or pull above the points that
are indicated on the drive.
