282 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 5 I/O Wiring

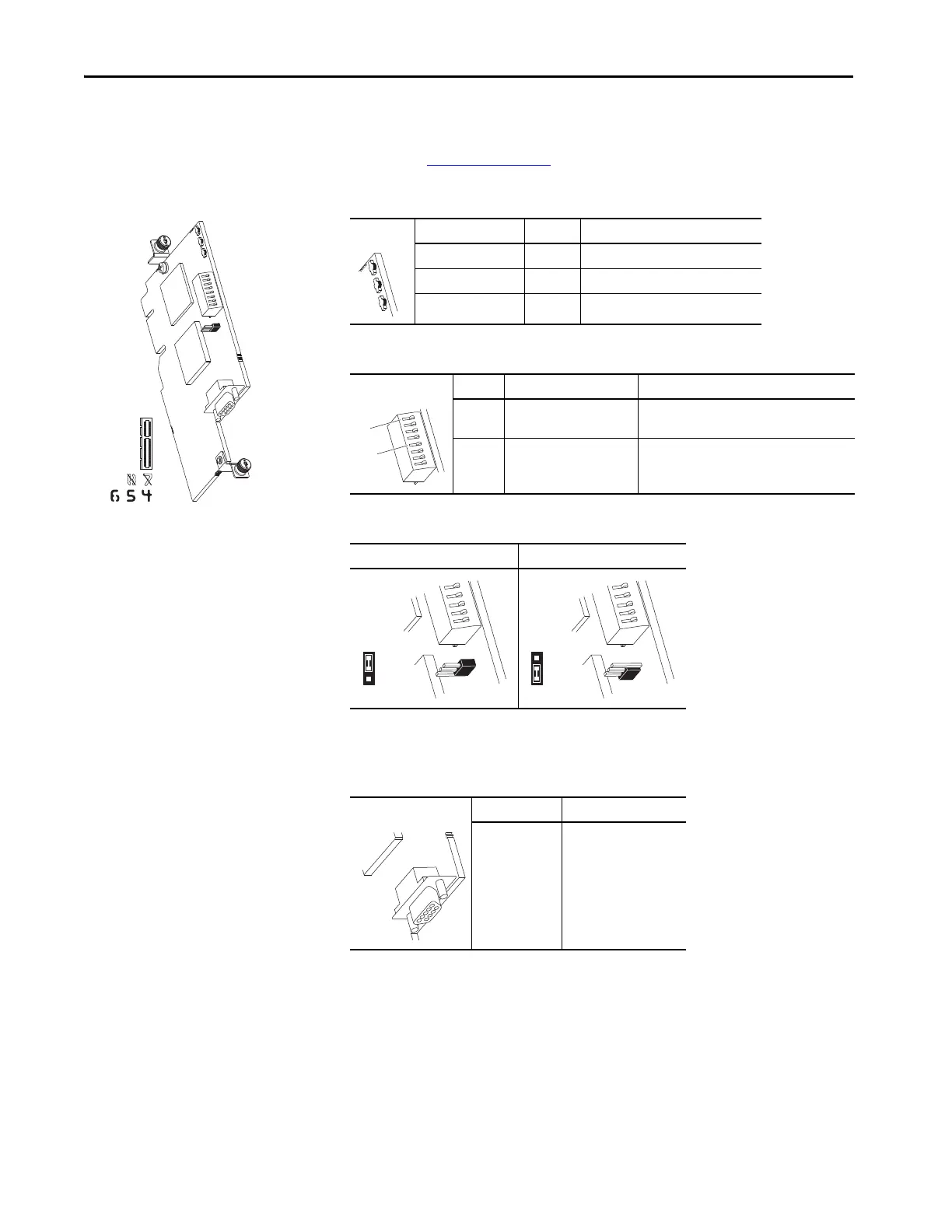

PROFIBUS Option Module
For complete information on the PROFIBUS option module, see the
PowerFlex 20-750-PBUS PROFIBUS DPV1 Option Module User Manual,
publication 750COM-UM004
.
Table 99 - PROFIBUS Option Module Status Indicator Indication
Table 100 - PROFIBUS Option Module Node Address Switches
Table 101 - PROFIBUS Option Module Selection Jumper
Table 102 - Network Connector
20-750-PBUS
Status Indicator Name Description
1 PORT DPI Connection Status
2 MOD Option Module Status
3 NET A ControlNet Channel A Status
Switch Name Description
1 Endianness Selection Switch
(Switch 8)
Sets endianness of data that are transmitted
over network.
2 Node Address Switches
(Switches 1…7)
Sets the node address of the option module.
PROFIBUS Mode Profidrive Mode
(1)
(1) Profidrive Mode is not yet supported. Changing the jumper position has no effect.
PROFIBUS is selected in both positions.
Name Description
PROFIBUS DB9
Female Connector
PROFIBUS connection to
the network.
1
2
3
1
2
P2
P2
