218 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 4 Power Wiring
Wall Mount Frames 2…5 Power Jumper Screw Removal and
Storage
Wall/Flange Mount Frames 2…5 use jumper screws to complete an electrical
connection when installed. Install or remove jumper screws according to the
recommendations in Table 45
.
When power jumper screws are not used, they are stored on the left interior
chassis wall as shown.

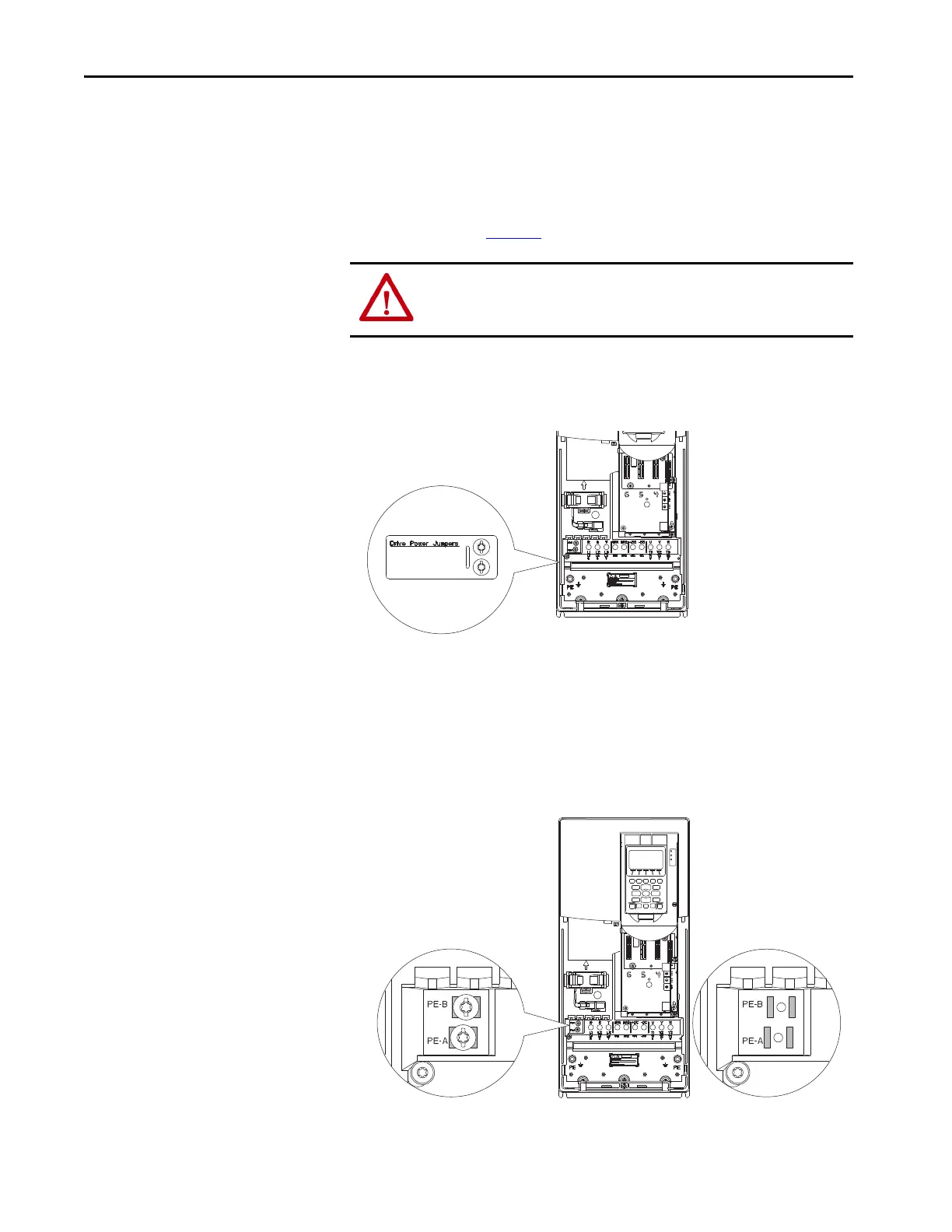

Figure 121 - Typical Wall Mount Frames 2…5 Jumper Screw Storage Location (Frame 4 shown)
When screws are installed, use this torque and tool:
Recommended torque = 1.36 N•m (12.0 lb•in) ±0.14 N•m (1.2 lb•in)
Recommended screwdriver = 6.4 mm (0.25 in.) flat or
T15 Hexalobular
Figure 122 - Typical Wall Mount Frames 2…5 Jumper Screw Installation Locations (Frame 4
shown)
ATTENTION: Hazard of equipment damage exists if jumpers are not properly
disconnected. For Frames 2…5, completely remove the jumper screw from
the circuit board.
Disconnected
Connected
