Lift and Mount the Drive Chapter 3
Enclosure Code G
Follow these guidelines for drives with enclosure code G.

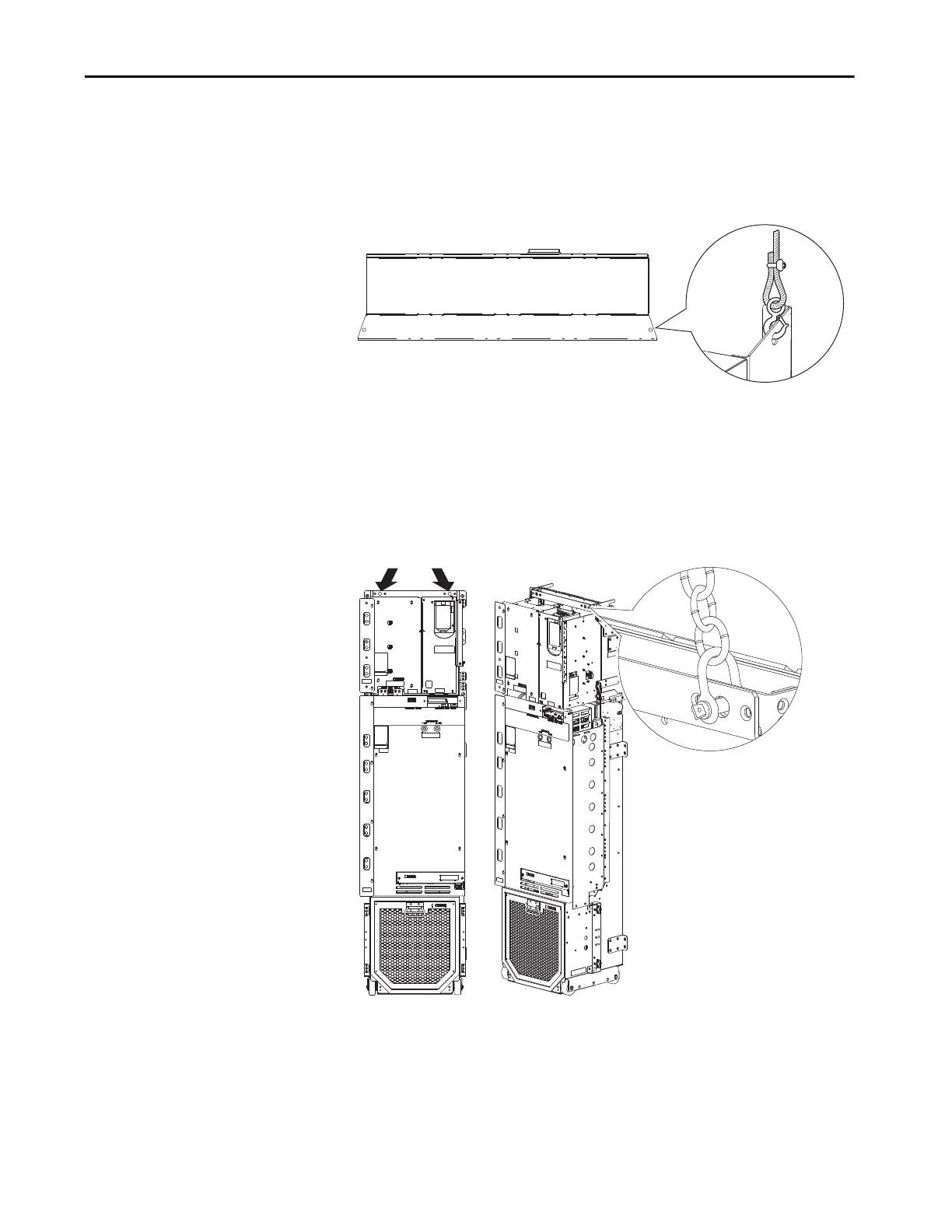

Figure 18 - Wall Mount Frames 6 and 7 Lifting Points – Four Places
Open Type Drive (Removed from Cabinet)
Follow these guidelines for drives that are removed from the cabinet.
Figure 19 - Floor Mount Drive Assembly – IP00, NEMA/UL Type Open Drive Lifting Points – Two
Places
