Chapter 5 I/O Wiring
Control Transformer
Connections – Common DC
Input Drives
The common DC input drive control transformer is factory set to 120V AC
input. A 240V AC input setting is also available by changing primary wire
connections.

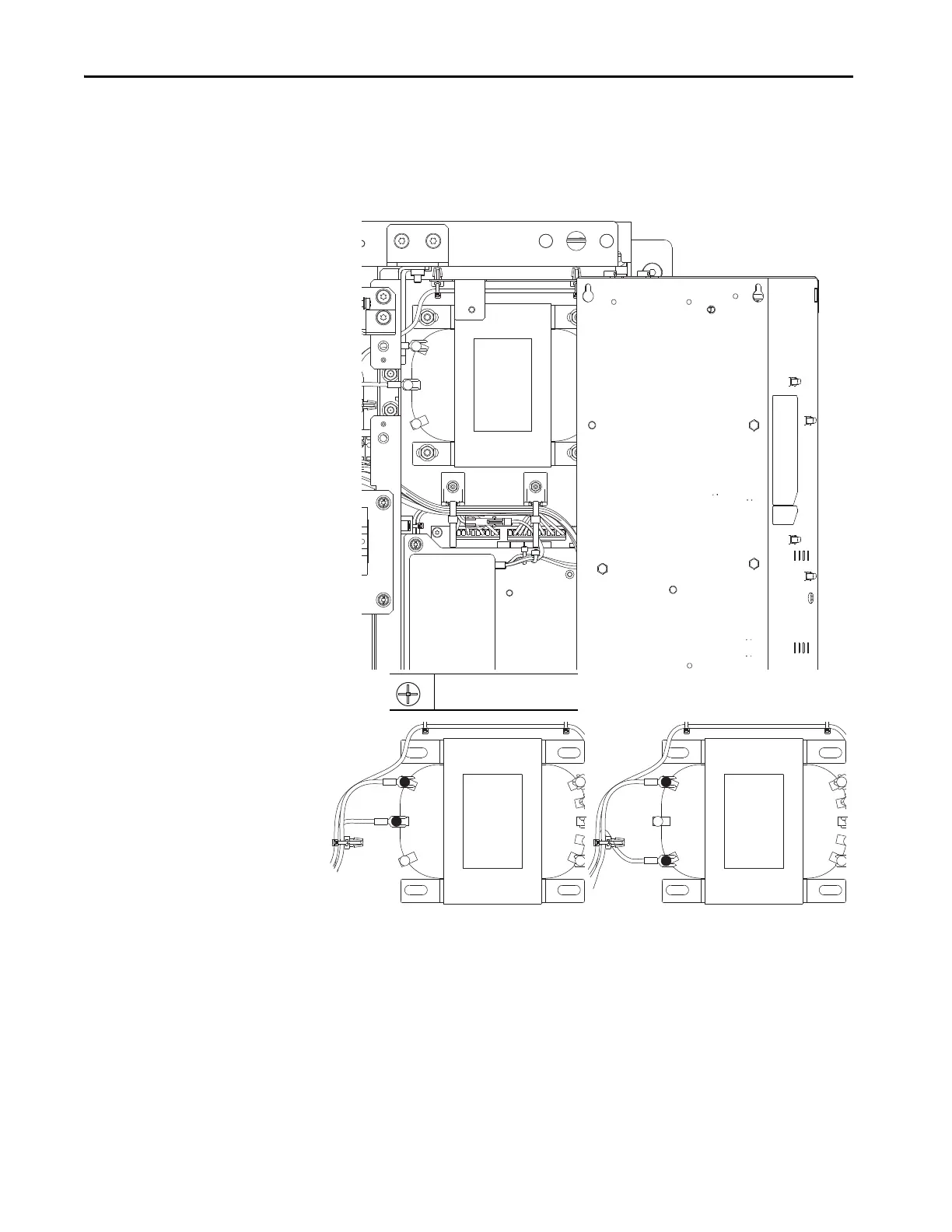

Figure 136 - Control Transformer Voltage Settings – Floor Mount Frames 8…10
120V Tap
240V Tap
P2
1.8 N•m (16 lb•in)
