46 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

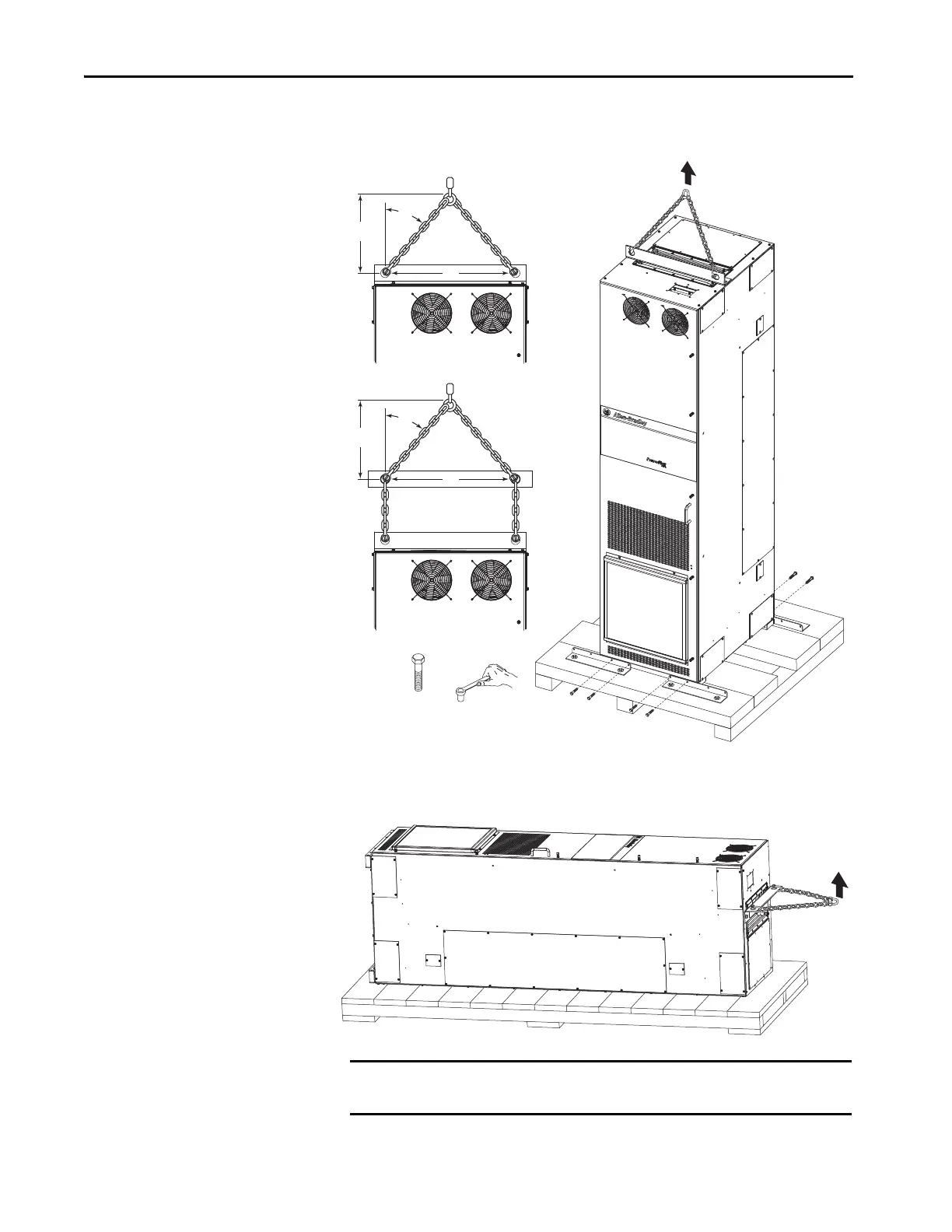

Release Floor Mount Drive
Cabinet from Shipping Skid
Remove the bolts that fasten a vertically oriented drive cabinet to the shipping
skid, and lift.
Remove the shipping crate that encloses a horizontally oriented drive cabinet
on the shipping skid, and lift.
IMPORTANT For drives that are equipped with the MCC bus option, with codes P20, P22,
and P24 in the catalog string, do not ship them horizontally.
>
1
/
2 A
A
<45°
>
1
/
2 A
A
<45°
M10 x 25
17 mm
