Allen-Bradley 20F Installation Instructions

Rockwell Automation Publication 750-IN001P-EN-P - April 2017 279
I/O Wiring Chapter 5
DeviceNet Option Module
For complete information on the DeviceNet option module, see the PowerFlex
750-Series Drive DeviceNet Option Module User Manual, publication
750COM-UM002
.

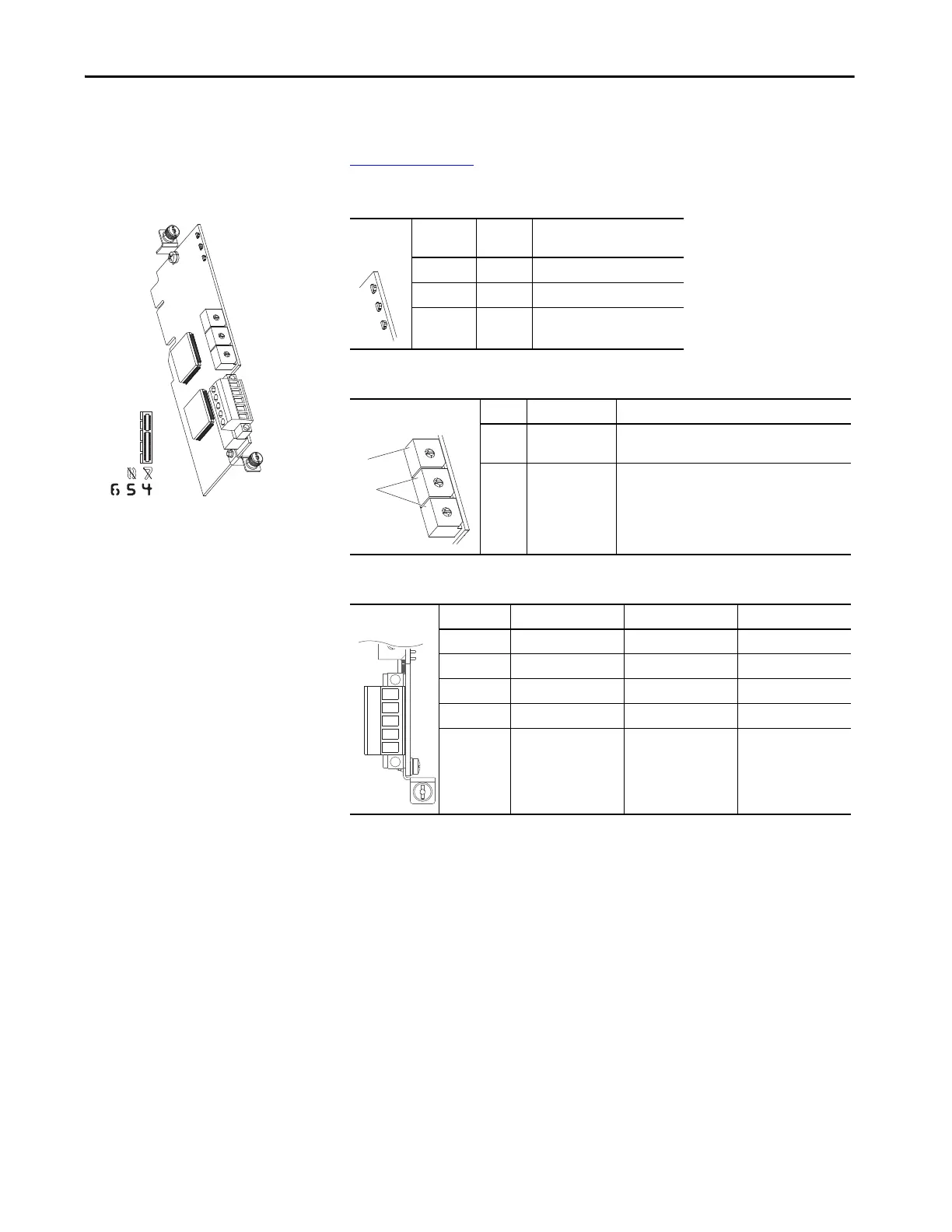

Table 89 - DeviceNet Option Module Status Indicator Indication
Table 90 - DeviceNet Option Module Rotary Switches
Table 91 - TB1 Terminal Designations
20-750-DNET
Status
Indicator
Name Description
1 PORT DPI Connection Status
2 MOD Option Module Status
3 NET A DeviceNet Status
Switch Name Description
1 Data Rate Switch Sets the DeviceNet data rate at which the option
module communicates.
2 Node Address
Switches
Sets the node address of the option module.
Terminal Color Signal Function
5Red V+ Power Supply
4 White CAN_H Signal High
3 Bare SHIELD Shield
2 Blue CAN_L Signal Low
1 Black V- Common
1
2
3
1
2
5
4
3
2
1
