242 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 5 I/O Wiring
Shunt Trip Contact Operation
A ground fault occurs when the input ground current exceeds the threshold set
in P16 [Gnd Cur Flt Lvl] On port 11 for five line cycles.
Common DC Input Drive
Control and Power Terminal
Blocks
This section provides details for the common DC input drive control and
power terminal block.

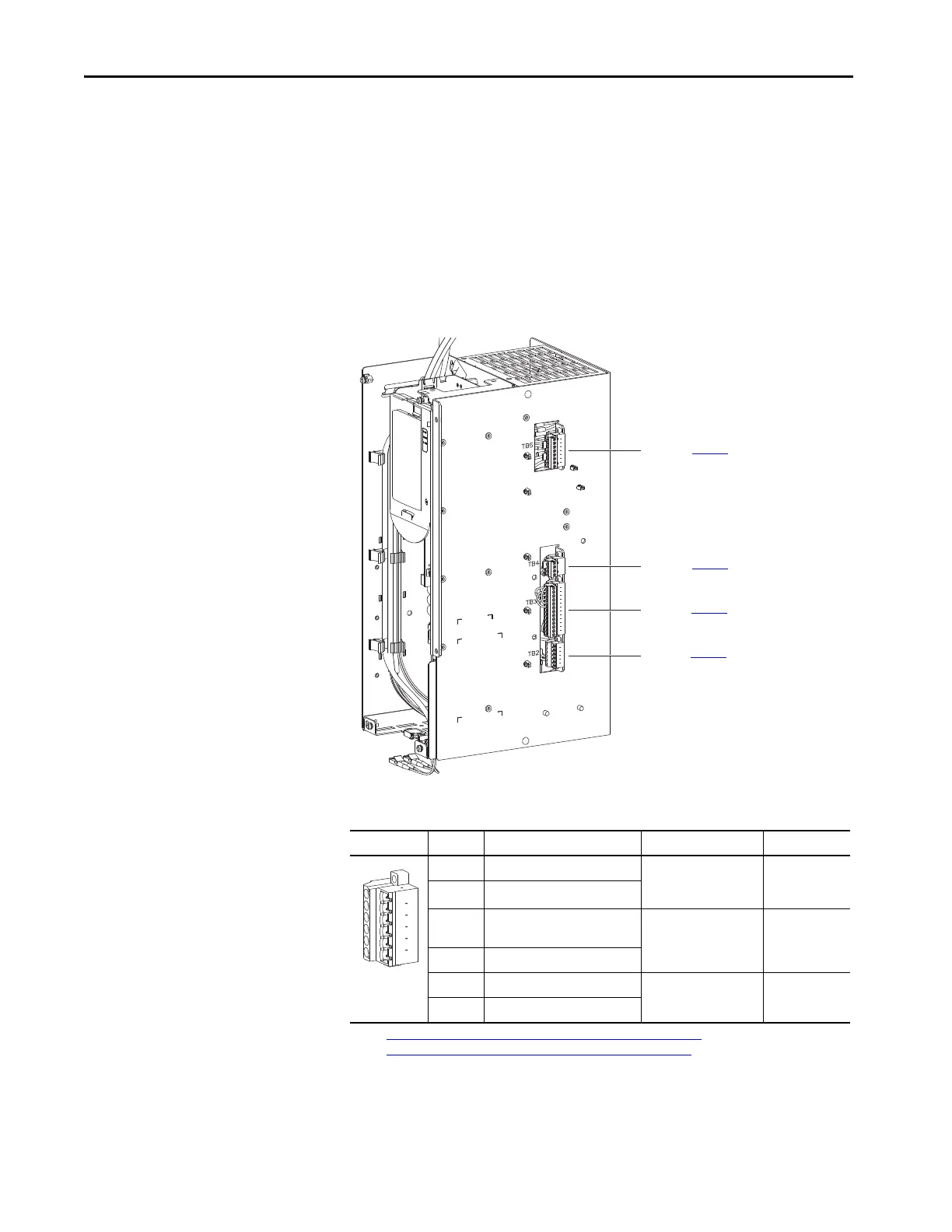

Figure 135 - Floor Mount Frames 8…10
Table 65 - TB2 Terminal Designations
Fixed I/O Terminal Name Description Rating
1 UPS 120V AC IN NEUTRAL Connections for
uninterruptible power
supply (UPS).
(1)
(1) See Uninterruptible Power Supply Connections – Common DC Input Drives on page 247.
N/A
2 UPS 120V AC IN HOT
3 CONTROL 120/240VAC IN
NEUTRAL
Connections for control
power supply.
(2)
(2) See 120/240V AC Power Supply Connections – Common DC Input Drives on page 248.
N/A
4 CONTROL 120/240VAC IN HOT
5 FAN 240VAC OUT NEUTRAL Connections for cooling
fans.
240V AC, 50/60
Hz, 1.4 A, 336VA
6 FAN 240VAC OUT HOT
Common DC Input Drive Control Panel
TB2 – See Table 65
TB3 – See Table 66
TB4 – See Table 67
TB5 – See Table 68
To Next Page
