Chapter 3 Lift and Mount the Drive

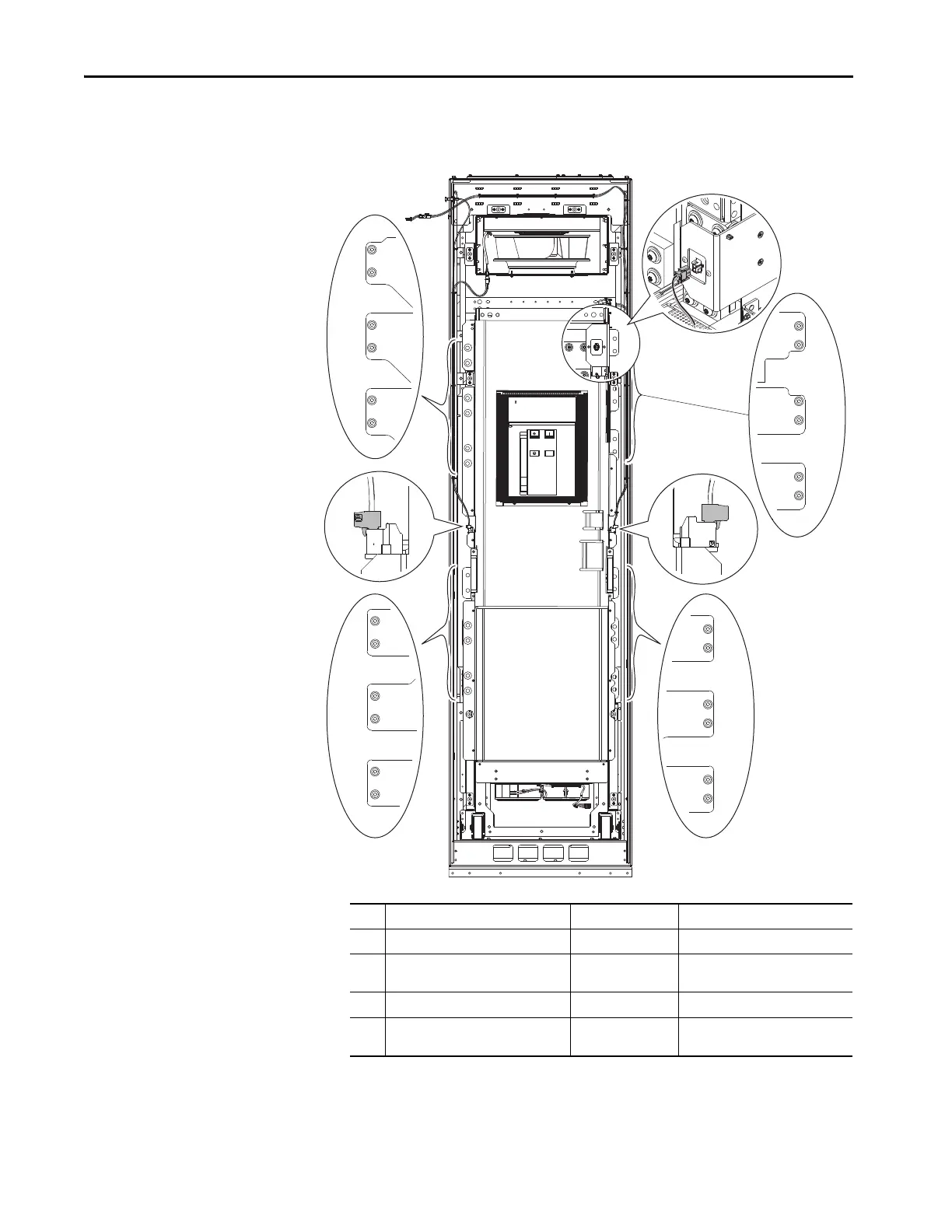

3. Disconnect the wiring harnesses and bus connections (see numbers 2, 3,
4, and 5).
2
3
3
4
4
5
5
No. Description Torque Recommended Tool
2 Thermostat connection (plug). N/A N/A
3 AC input connections (12 places). 22.4 N•m (200 lb•in) T45 Hexalobular driver with 457 mm
(18-in.) extension
4 Terminal block connections (plugs). N/A N/A
5 Output reactor connections (12 places). 22.4 N•m (200 lb•in) T45 Hexalobular driver with 457 mm
(18-in.) extension
