Allen-Bradley 20F Installation Instructions

Rockwell Automation Publication 750-IN001P-EN-P - April 2017 259
I/O Wiring Chapter 5
Analog Voltage Output
±10V, 0…20 mA Bipolar
+10V Unipolar
11-Series I/O Module TB1
•Configuration
Port X (11-Series I/O Module): P70 [Anlg Out Type], bit 0 = 0
•Set selection
Port X (11-Series I/O Module): P75 [Anlg Out0 Sel] = Port 0: P3 [Mtr Vel Fdbk]
•Adjust scaling
Port X (11-Series I/O Module): P78 [Anlg Out0 DataHi] = 60 Hz
Port X (11-Series I/O Module): P79 [Anlg Out0 DataLo] = 0 Hz
Port X (11-Series I/O Module): P80 [Anlg Out0 Hi] =10V/20 mA
Port X (11-Series I/O Module): P81 [Anlg Out0 Lo] = 0V/0 mA
•View results
Port X (11-Series I/O Module): P77 [Anlg Out0 Data]
Port X (11-Series I/O Module): P82 [Anlg Out0 Val]
2-Wire Control Non-
reversing
24V DC internal supply
11-Series I/O Module TB1
•Set direction mode
Port 0: P308 [Direction Mode] = 2 “Rev Disable”
•Set selection
Port 0: P163 [DI Run] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
•View results
Port X (11-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
2-Wire Control Reversing
External 24V supply
20-750-1132C-2R
20-750-1133C-1R2T
11-Series I/O Module TB1
•Set direction mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
•Set selection
Port 0: P164 [DI Run Forward] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P165 [DI Run Reverse] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
•View results
Port X (11-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]

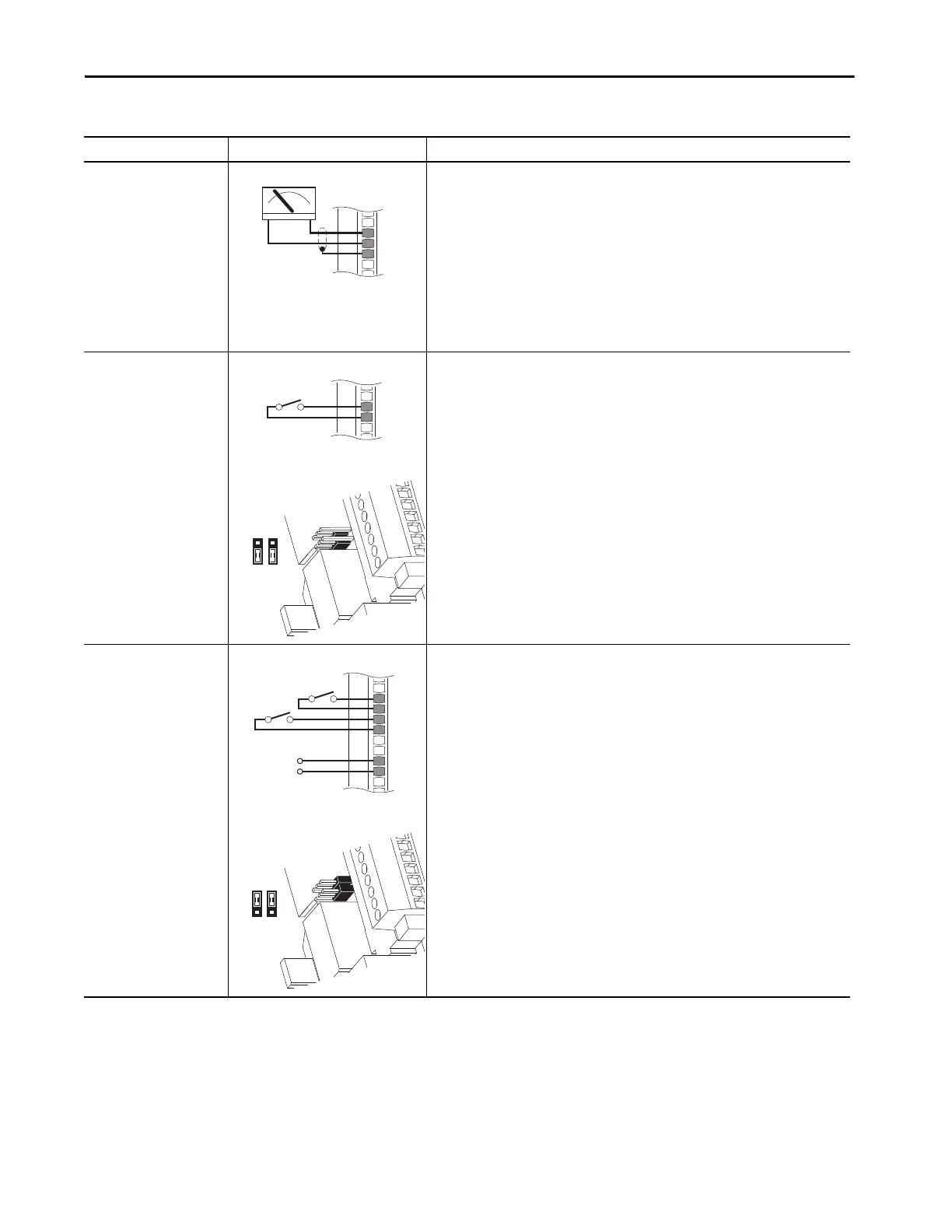

Table 76 - 11-Series I/O Option Module TB1 Wiring Examples (Continued)
Input/Output Connection Example Required Parameter Changes
Ao0–
Ao0+
Sh
+–
Di0
Di0P
Stop-Run
P3
P8
3
1
3
1
Di0
Di0P
Di1
Di1P
Ip
Ic
+24V
Common
Run Fwd
Run Rev
P3 P8
3
1
3
1
