Rockwell Automation Publication 750-IN001P-EN-P - April 2017 71
Lift and Mount the Drive Chapter 3

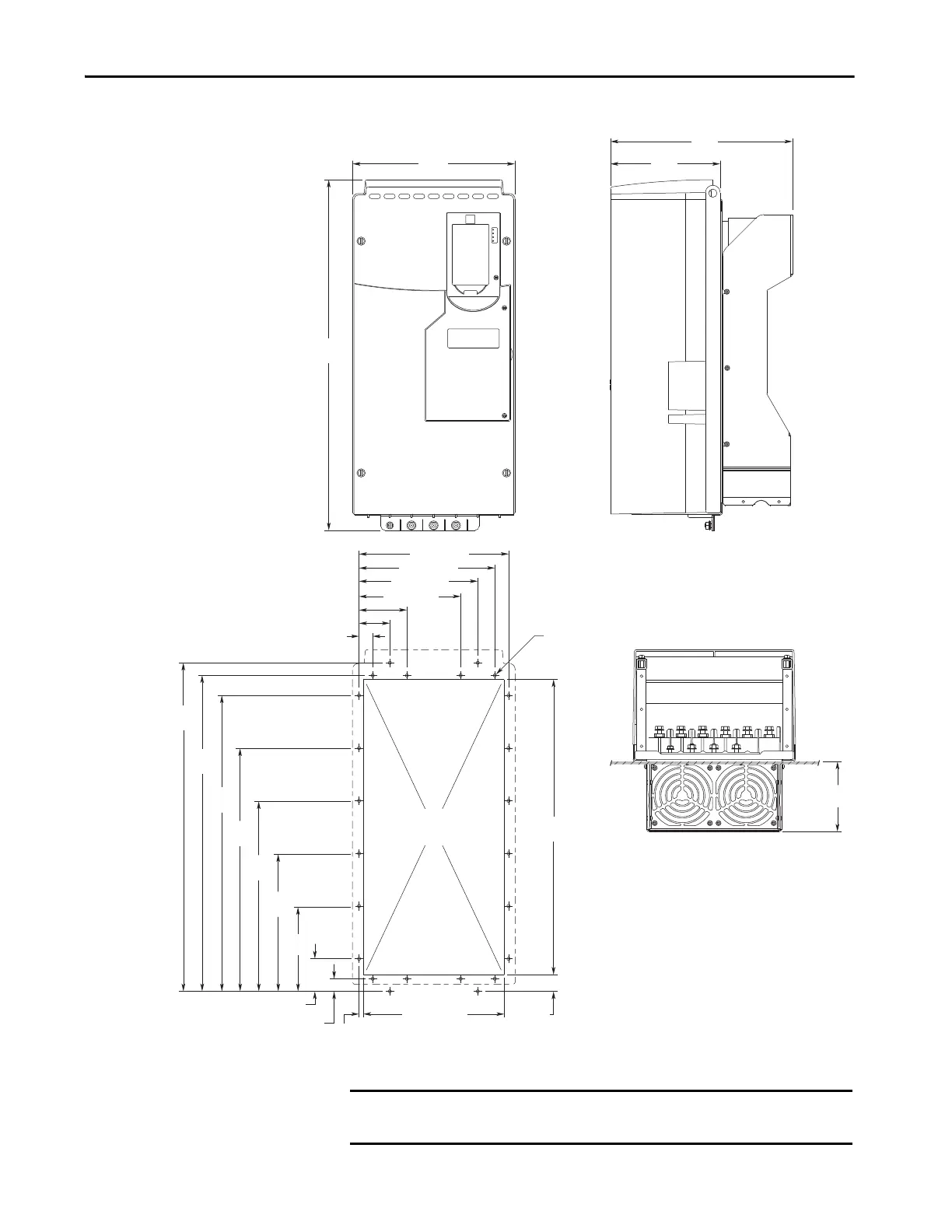

Figure 36 - Flange Mount, Frame 6
Dimensions are in millimeters and (inches).
208.4
(8.20)
346.4
(13.64)
308.0
(12.13)
665.5
(26.20)
162.0
(6.38)
24.0
(0.94)
262.0
(10.31)
362.0
(14.25)
462.0
(18.19)
562.0
(22.13)
600.0
(23.62)
624.0
(24.57)
26.0 (1.02)
91.0 (3.58)
193.0 (7.60)
258.0 (10.16)
225.5 (8.88)
284.0 (11.18)
24x: Ø6.4
(Ø0.25)
138.0
(5.43)
561.0 +2.0/-1.5
(22.09 +0.08/-0.06)
268.0 +2.0/-1.5
(10.60 +0.08/-0.06)
8.0
(0.30)
62.0
(2.44)
31.5
(1.24)
58.5 (2.30)
IMPORTANT Must use flange adapter kit (catalog number 20-750-FLNG4-F6) to meet
enclosure rating.
