Chapter 3 Lift and Mount the Drive

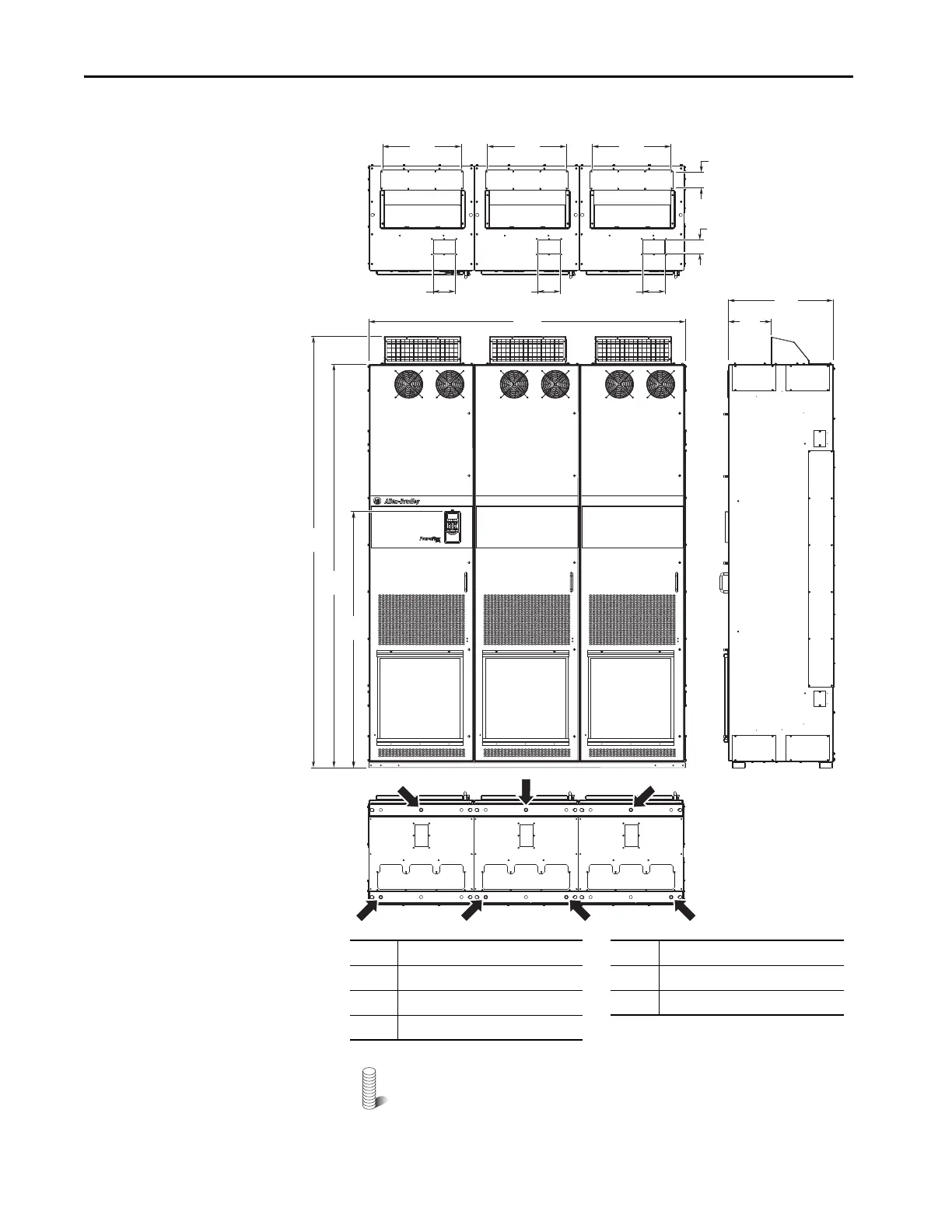

Figure 47 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 10 (Enclosure Code B)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
2453
(96.6)
1800
(70.9)
2300
(90.6)
440
(17.3)
600
(23.6)
240
(9.4)
127
(5.0)
440
(17.3)
127
(5.0)
440
(17.3)
68
(2.7)
127
(5.0)
76
(3.0)
1
1
1
2
22
3
3
4
5
1464
(57.6)
Bottom
Top
No. Description No. Description
1 Power wiring conduit plates. 4 Optional HIM.
2 Control wiring conduit plates. 5 Recommended seven-hole anchoring.
3 Optional exhaust hood.
