Allen-Bradley 20F Installation Instructions

Rockwell Automation Publication 750-IN001P-EN-P - April 2017 95
Lift and Mount the Drive Chapter 3

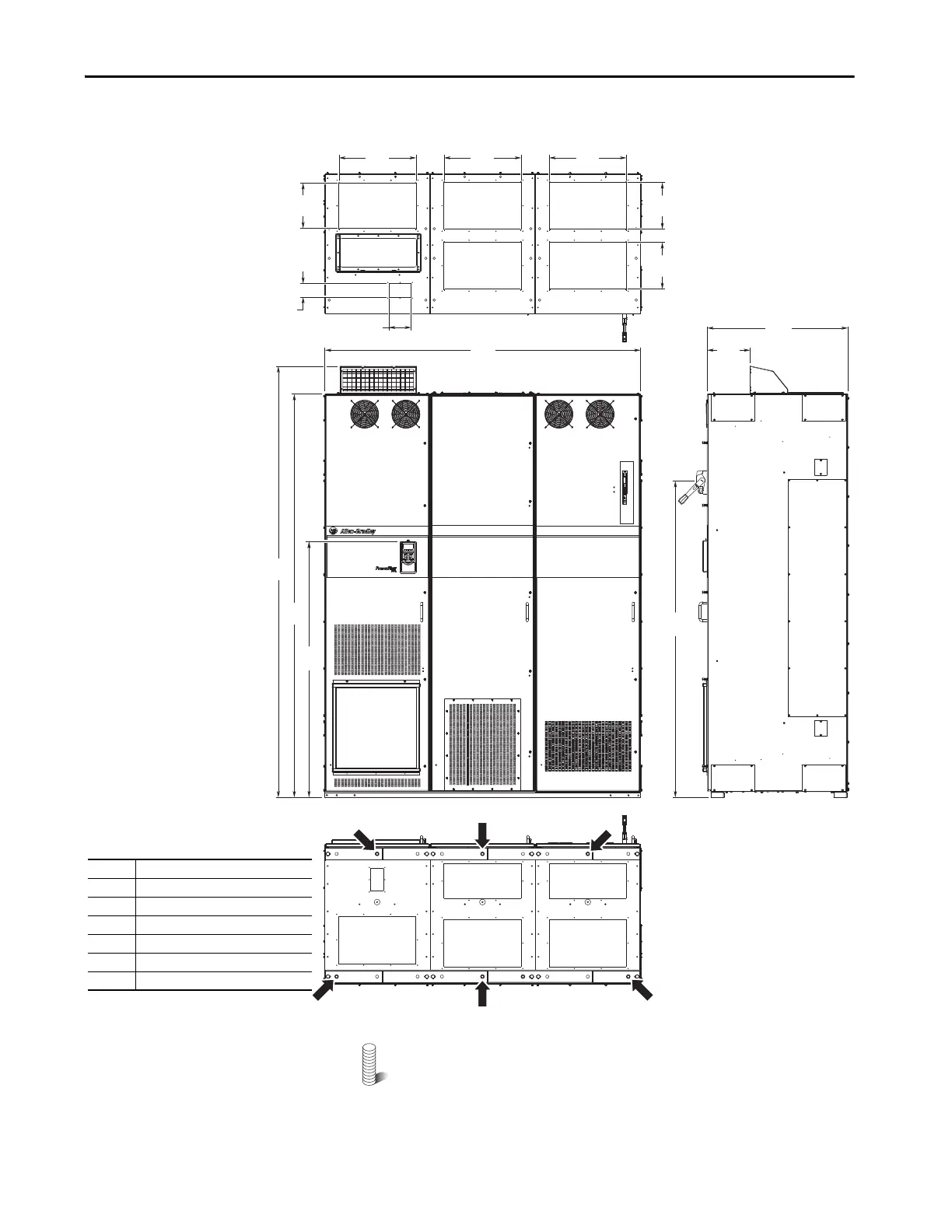

Figure 59 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8
(Enclosure Code L, P, W)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
2453
(96.6)
1800
(70.9)
2300
(90.6)
440
(17.3)
78
(3.1)
1
1
1
1
1
2
3
4
5
6
268
(10.5)
1464
(57.6)
440
(17.3)
800
(31.5)
240
(9.4)
1808
(71.2)
440
(17.3)
259
(10.2)
259
(10.2)
127
(5.0)
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4 Option bay disconnect switch.
5 Optional HIM.
6 Recommended six-hole anchoring.
Bottom
Top
800 mm (31.5 in.) Deep Drive with
Wiring Bay and Cabinet Options Bay
