Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 103

Configure and Use Simulated I/O Chapter 5

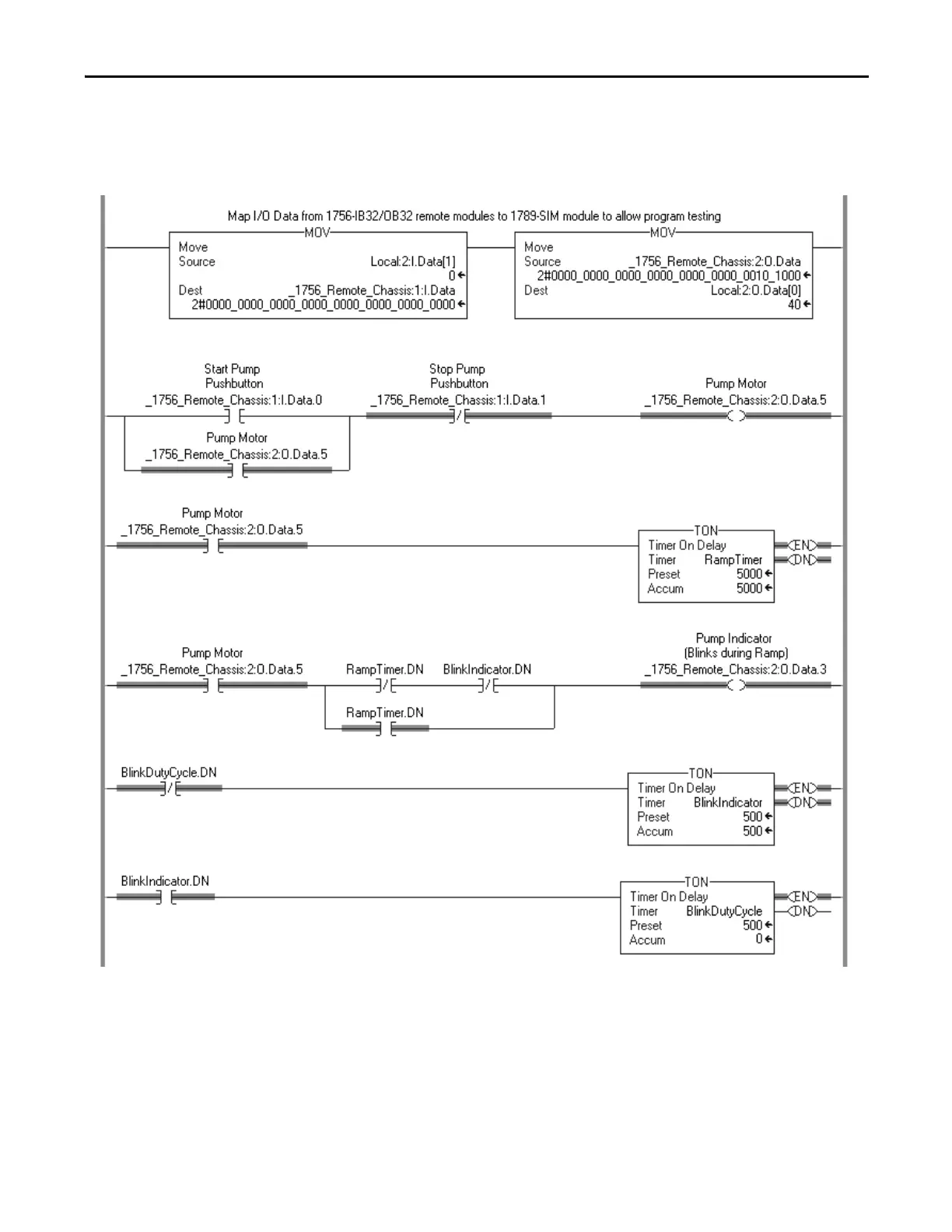

Example: Move Application

Data into the 1789-SIM Tags

This example uses MOV instructions to copy:

• Input data from the 1789-SIM module into the application’s input tags

• Application’s output tags into the output data for the 1789-SIM module
