Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 97

Configure and Use Simulated I/O Chapter 5

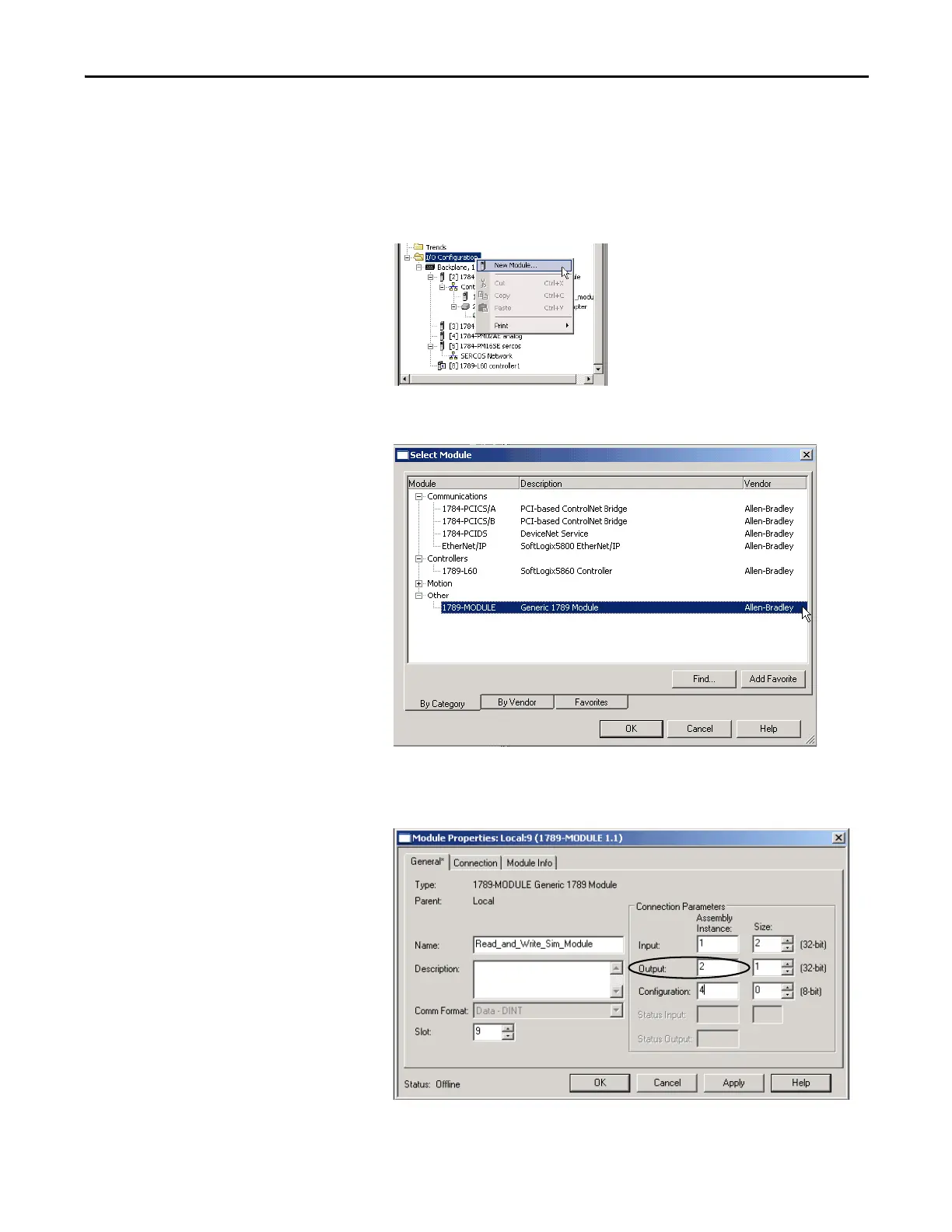

Step 2: Configure the 1789-SIM module as Part of the Project

Use the software to map the 1789-SIM module as part of the SoftLogix project.

1. In the project, right-click I/O Configuration folder, and choose New

Module.

The Select Module dialog box appears.

2. Select the Generic 1789 Module and click OK.

The New Module dialog box appears.
