Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 27

What is the SoftLogix System? Chapter 2

Configure the SoftLogix

Controller

You must first create and configure your SoftLogix 5800 controller, that is,

catalog number 1789-L10, 1789-L30, or 1789-L60, in the virtual chassis

monitor.

Step 1: Create and Configure the Controller in the SoftLogix Chassis

Monitor

When you install a controller, the Chassis Monitor lets you configure specific

characteristics about the controller. To configure the controller in the Chassis

Monitor, follow these steps.

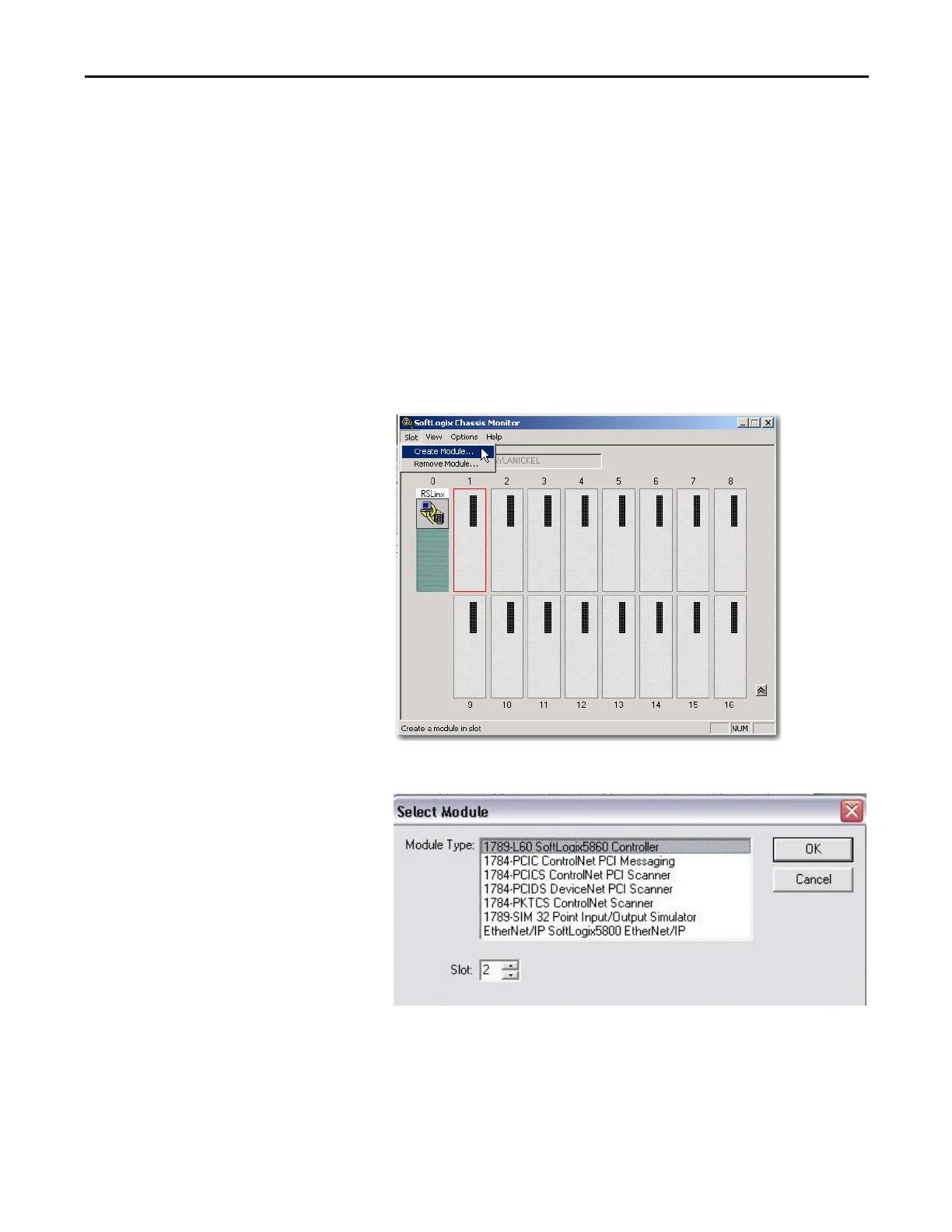

1. In the SoftLogix Chassis Monitor, from the Slot menu, choose

Create Module.

The Select Module dialog box appears.
