Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 213

Communicate with Devices on a ControlNet Network Appendix B

Step 6: Schedule the Network

Use RSNetWorx software to schedule the ControlNet network. The controller

project must already be downloaded from RSLogix 5000 software to the

controller and the controller must be in Program or Remote Program mode. For

more detailed information, see the RSNetWorx for ControlNet Getting Results

Guide, publication CNET-GR001

These steps describe how to schedule the network.

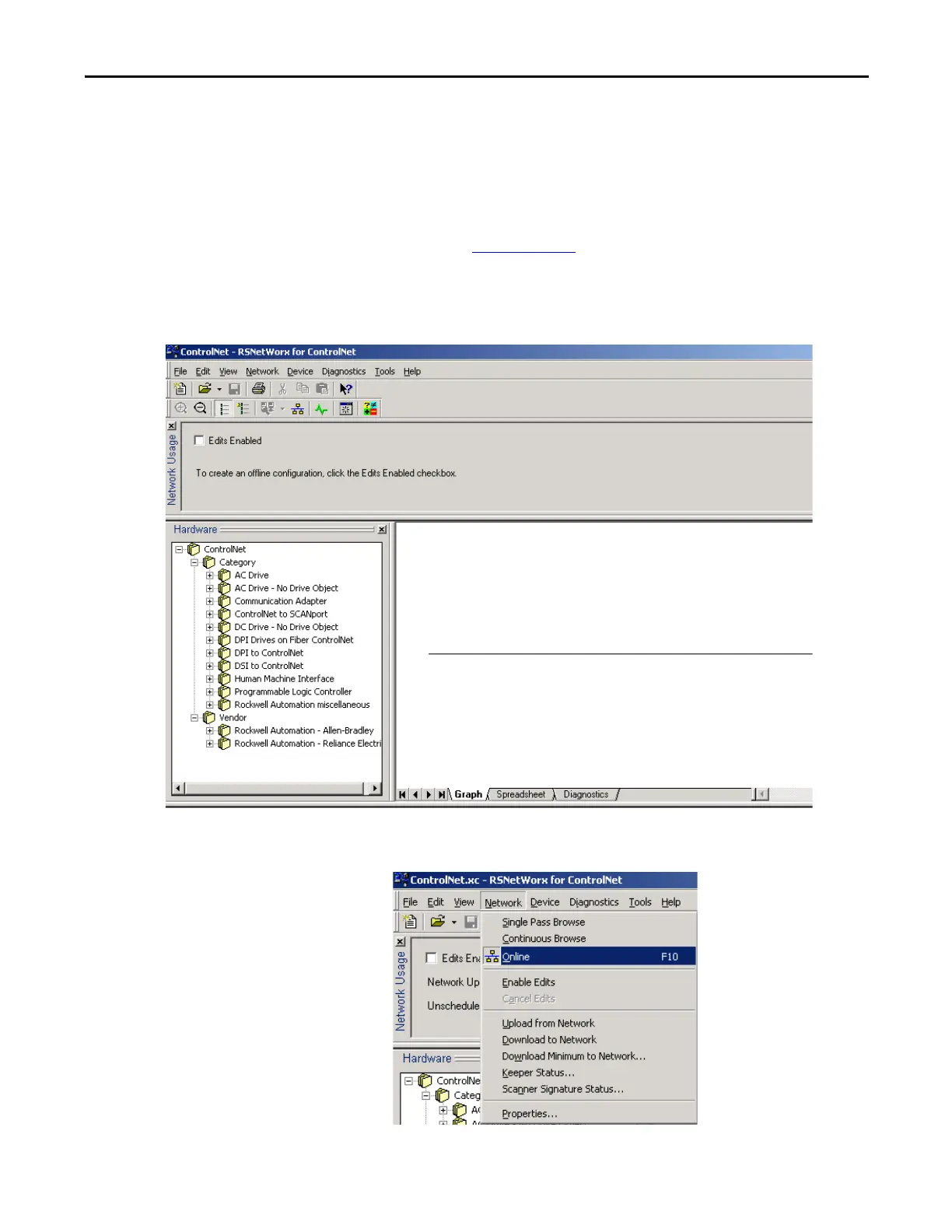

1. Launch RSNetWorx for ControlNet software.

2. From the Network menu, choose Online to go online and survey

the network.
