Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 69

Communicate with Devices on an Ethernet Network Chapter 3

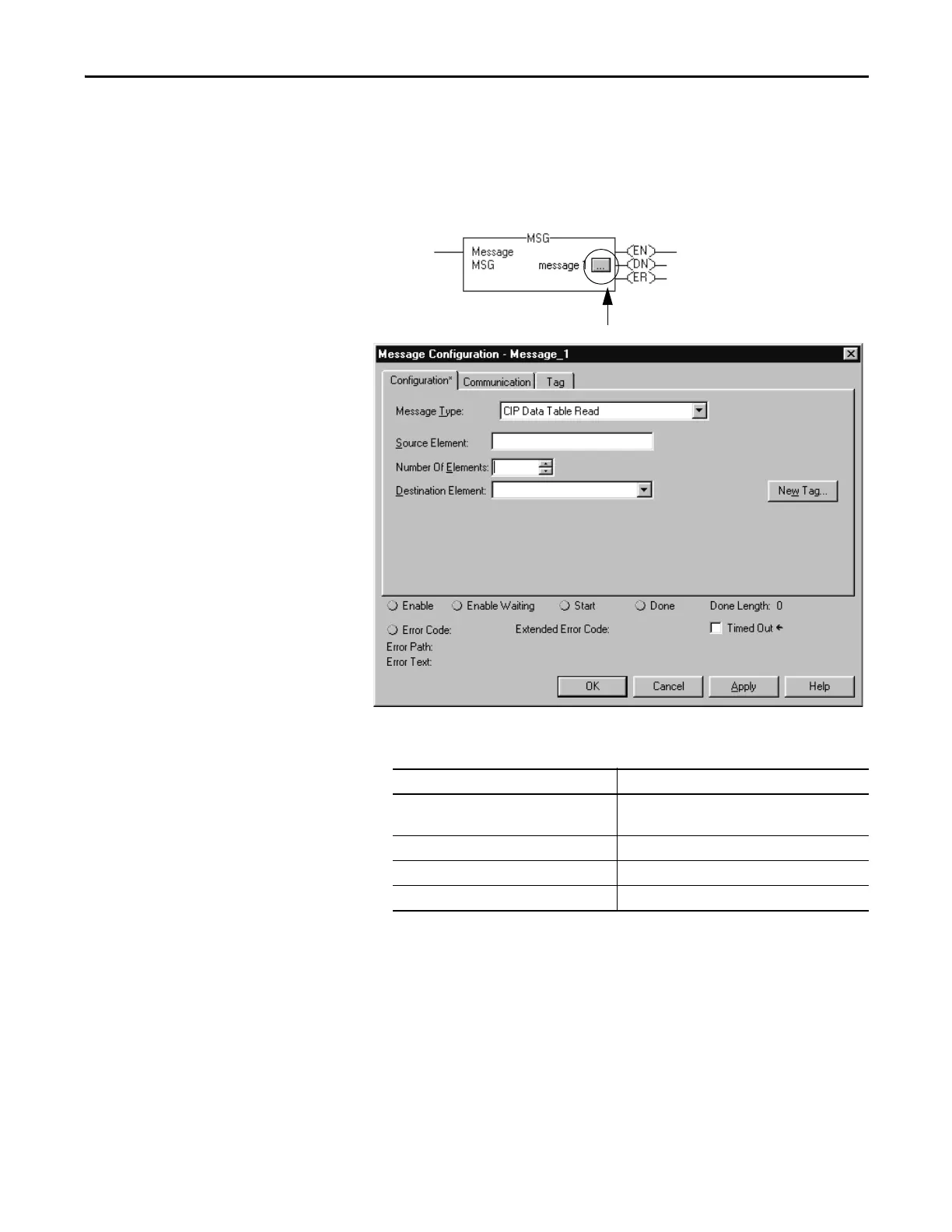

Configure a MSG Instruction

How you configure the MSG instruction depends on the target device.

1. Click MSG to launch the Message Configuration dialog box.

2. On the Configuration tab, configure the following.

For this item Specify

Message Type CIP Data Table Read or

CIP Data Table Write

Source Element Tag containing the data to be transferred

Number of Elements Number of array elements to transfer

Destination Tag Tag to which the data will be transferred
