Chapter 3 Communicate with Devices on an Ethernet Network

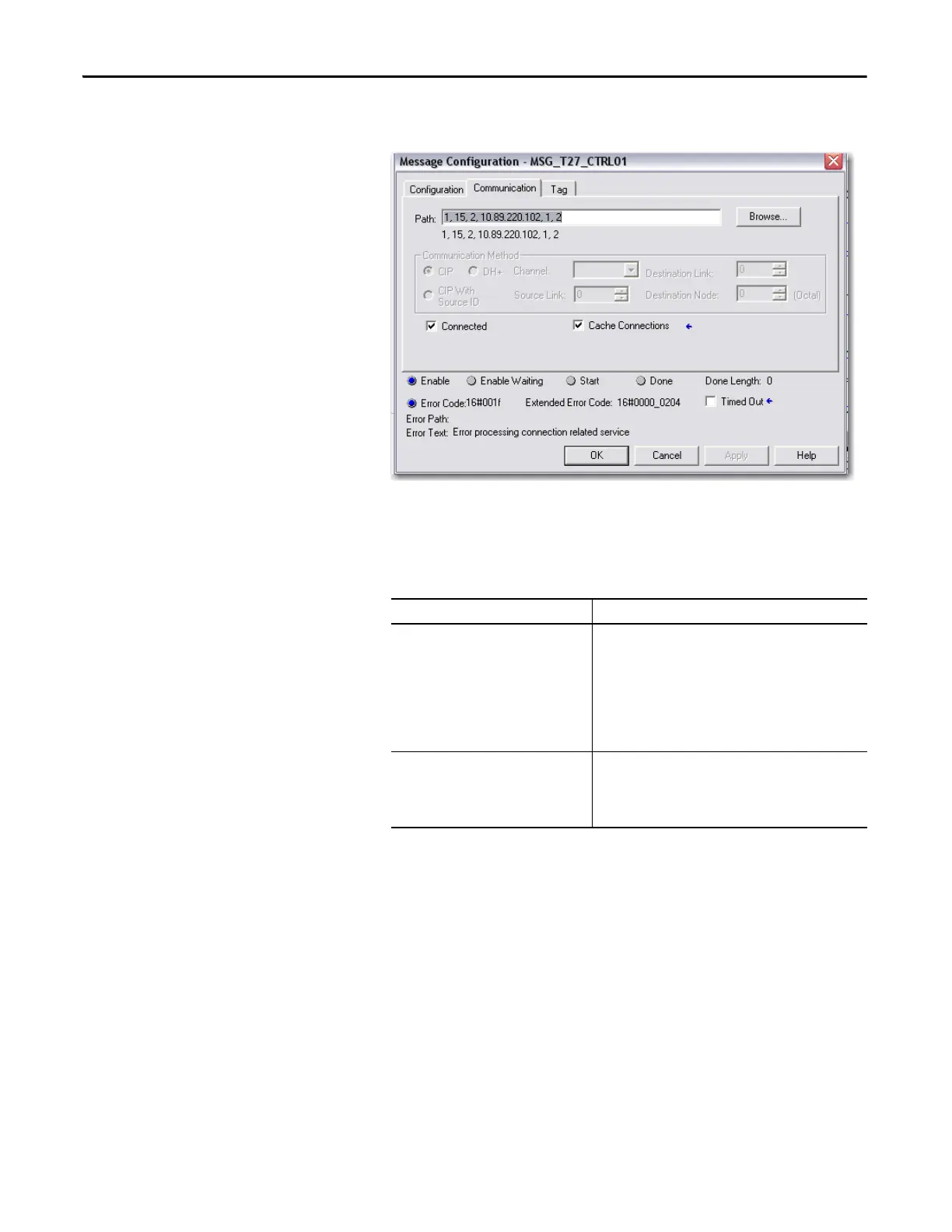

On the Communication tab, specify the communication path.
A communication path requires pairs of numbers. The first number in the
pair identifies the port from which the message exits. The second number
in the pair designates the node address of the next device.
For this item Specify
Communication Path
(Each SoftLogix controller resides in its
own computer)
1,2,130.151.255.43,1,5
where:
1 is the SoftLogix backplane of Soft1
2 is Ethernet port in slot 5
130.151.255.43 is IP address of the target
1 is the SoftLogix backplane of Soft2
5 is the controller slot of Soft2
Communication Path
(Each SoftLogix controller resides in the
same computer)
1,5
where:
1 is the SoftLogix backplane of Soft1
5 is the controller slot of Soft2
