32 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 2 What is the SoftLogix System?

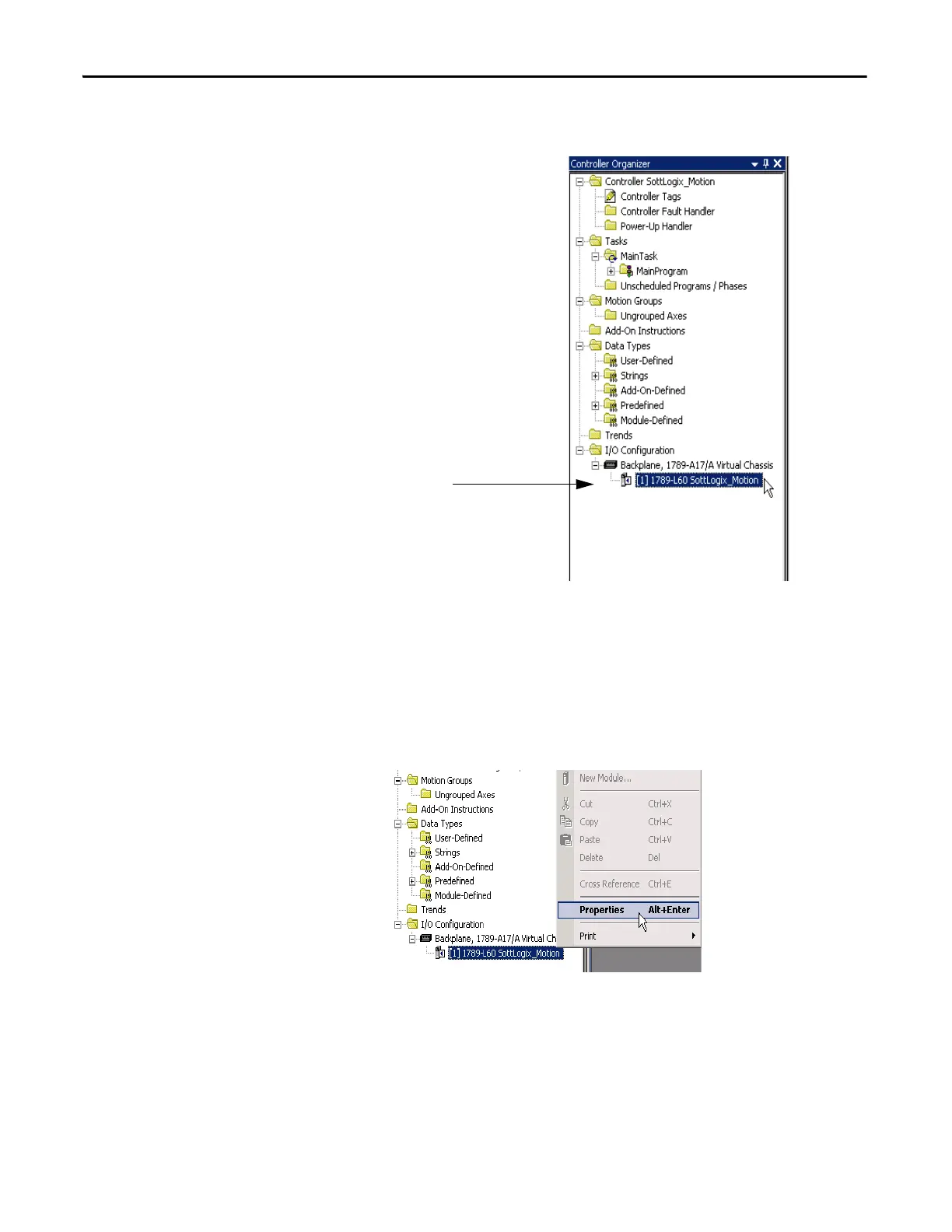

You now see the new controller in the Controller Organizer’s

I/O Configuration section of the Logix Designer application.

Step 3: Configure the Controller in the Logix Designer Application

Project

1. To configure the controller, in the Controller Organizer, from the I/O

Configuration folder, right-click the new controller you just created and

choose Properties.

Logix Designer Application

Controller Organizer
