106 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 6 Execute External Routines

Add an External Routine to

the Controller Organizer

You add an external routine to the Controller Organizer the same way you create

a new ladder routine.

Follow these steps.

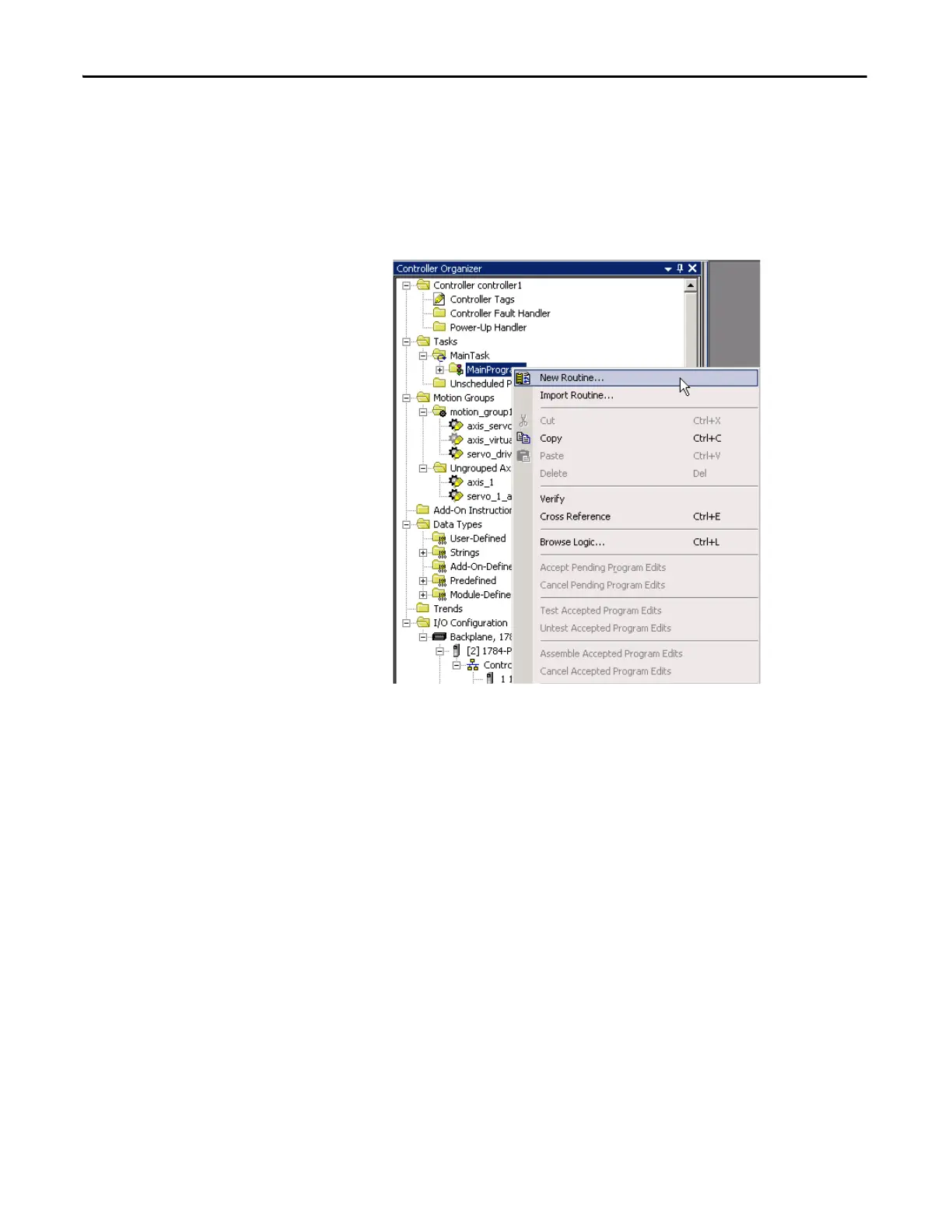

1. In the Logix Designer application, right-click Main Program folder in the

Controller Organizer and choose New Routine.
