Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 107

Execute External Routines Chapter 6

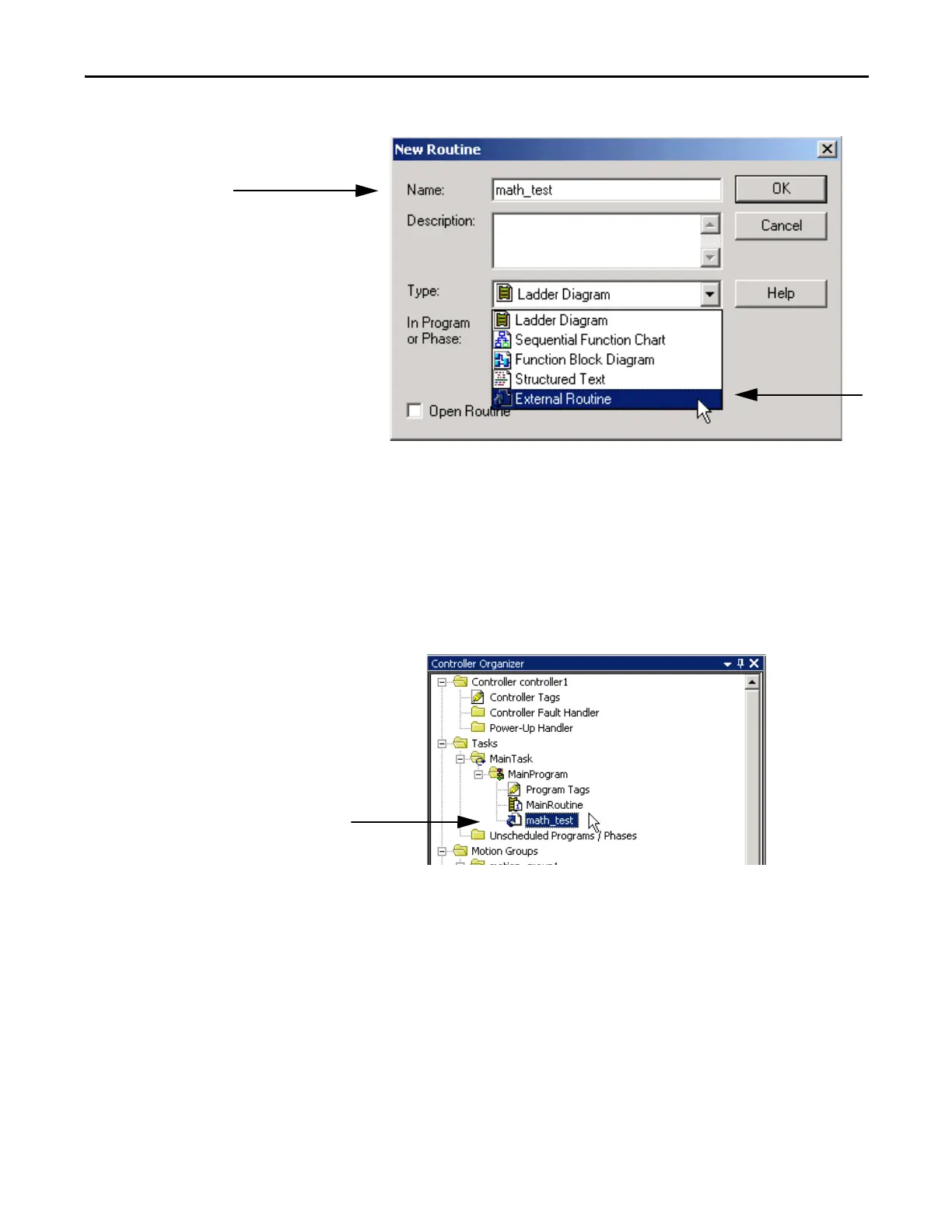

The New Routine dialog box appears.

2. Name the new routine.

In this example, we named it ‘math_test.’

3. From the Type pull-down menu, choose External Routine.

4. Click OK.

The new routine now appears in the Controller Organizer under the

Main Program.
