94 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 5 Configure and Use Simulated I/O

Step 1: Create the 1789-SIM Module in the SoftLogix Chassis Monitor

Before you can operate the module, you must create the 1789-SIM module as

part of the SoftLogix Chassis Monitor. You can install as many 1789-SIM

modules as allowed by your activation level of the controller.

Complete these steps to install the SIM module.

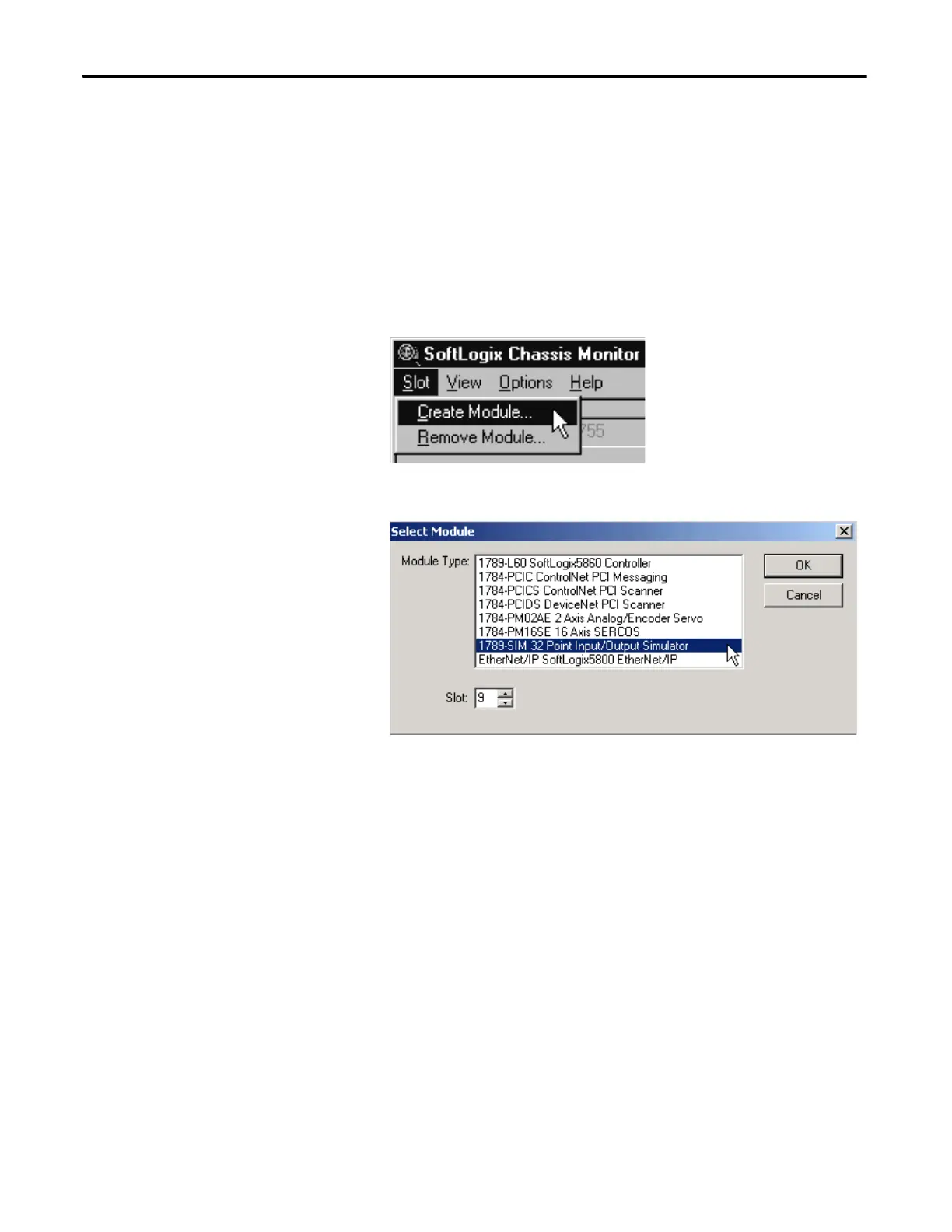

1. From the Slot menu in the SoftLogix Chassis Monitor, choose

Create Module.

The Select Module dialog box appears.

2. Choose the 1789-SIM 32 Point Input/Output Simulator.

3. Choose the slot number.

For this example, we chose slot 9.

4. Click OK.

Default Chapter5
