Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 85
Communicate with Serial Devices Chapter 4
Controller Status Indicators
The SoftLogix controller has an RS-232 status indicator that follows
this behavior.
Please note that these status indicator states are different than for the
ControlLogix controller.

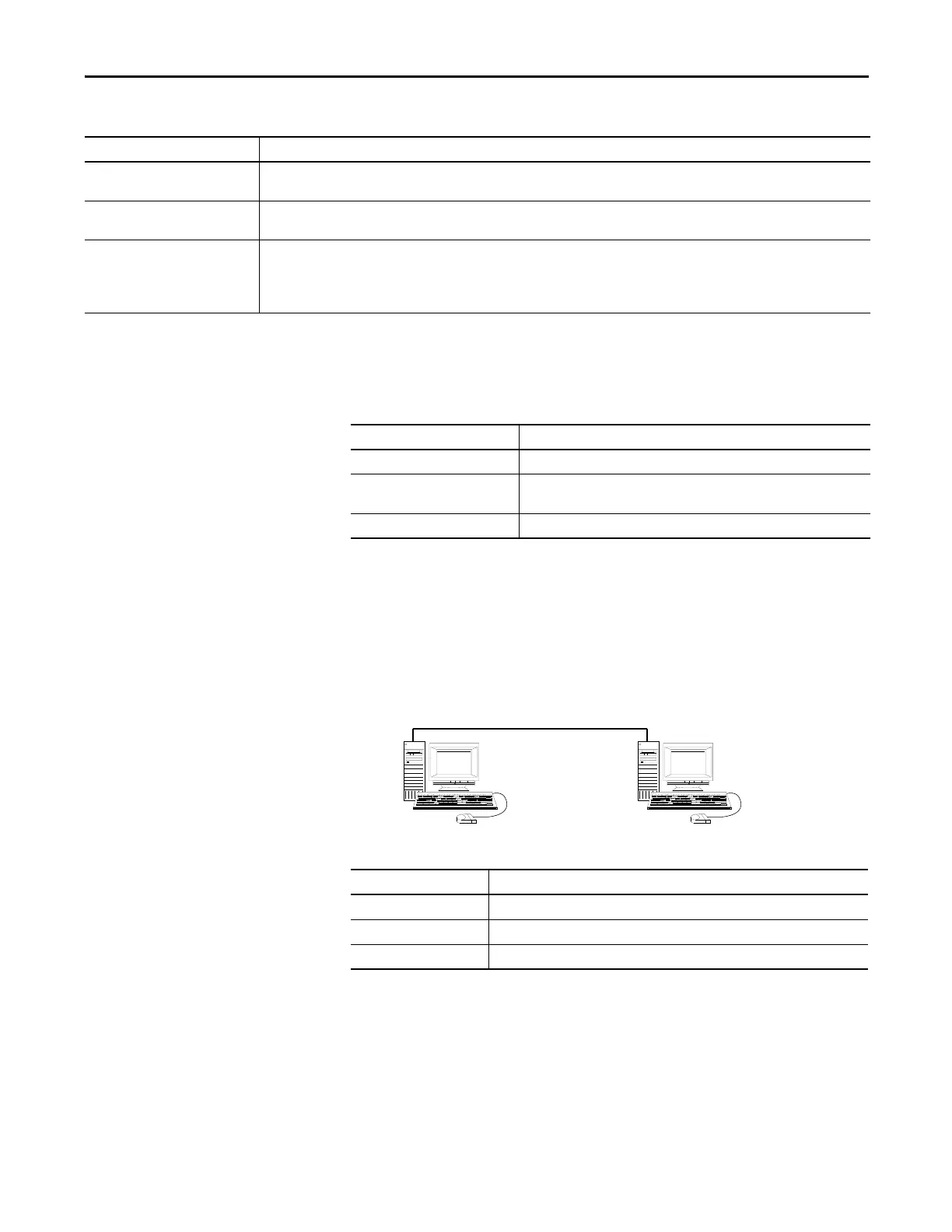

Example 1: Workstation
Directly Connected to a
SoftLogix Controller
In this example, a workstation directly connects to a SoftLogix controller over a
serial device.
Use the Logix Designer application to configure the controller’s serial port for the
DF1 Point-to-Point (full-duplex) protocol. This type of protocol supports
simultaneous transmission between two devices in both directions. The DF1
Point-to-Point protocol controls message flow, detects and signals errors, and
retries if errors are detected.
Station Address The station address for the serial port on the DF1 point-to-point network. Enter a valid DF1 address (0…254). Address 255 is reserved for
broadcast messages. The default is 0.
Enable Store and Forward Enable Store Forward box should only be checked if the controller that you are downloading the project to is connected to the Master radio
modem. This particular controller will help support the radio modem network that is being created.
Error Detection In the Error Detection section, click one of the radio buttons to specify the error detection scheme used for all messages.
BCC: the processor sends and accepts messages that end with a BCC byte. BCC is quicker and easier to implement in a computer driver. This is
the default.
CRC: the processor sends and accepts messages with a 2-byte CRC. CRC is a more complete method.
Table 4 - System Protocol Tab Descriptions
Field Mode
Indicator Description
Off You selected ‘None’ for the COM port selection of the controller.
Green The COM port you selected was successfully assigned to channel 0 of
the controller.
Red There is conflict with COM port or the COM port number you selected is invalid.
Item Description
1Serial
2 Workstation with Logix Designer application
3 Computer with SoftLogix controller
