Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 225

Communicate with Devices on a ControlNet Network Appendix B

Produce and Consume Tags

You can produce a base tag, alias tag, or consumed tag. Produced data can be

the following:

• A tag of DINT or REAL data type

• An array of DINT or REAL elements

• A user-defined structure with any type of elements. Use a user-defined

structure to group BOOL, SINT, and INT data

The consumed tag must have the same data type as the produced tag in the

originating controller. The controller performs type checking to be sure proper

data is being received.

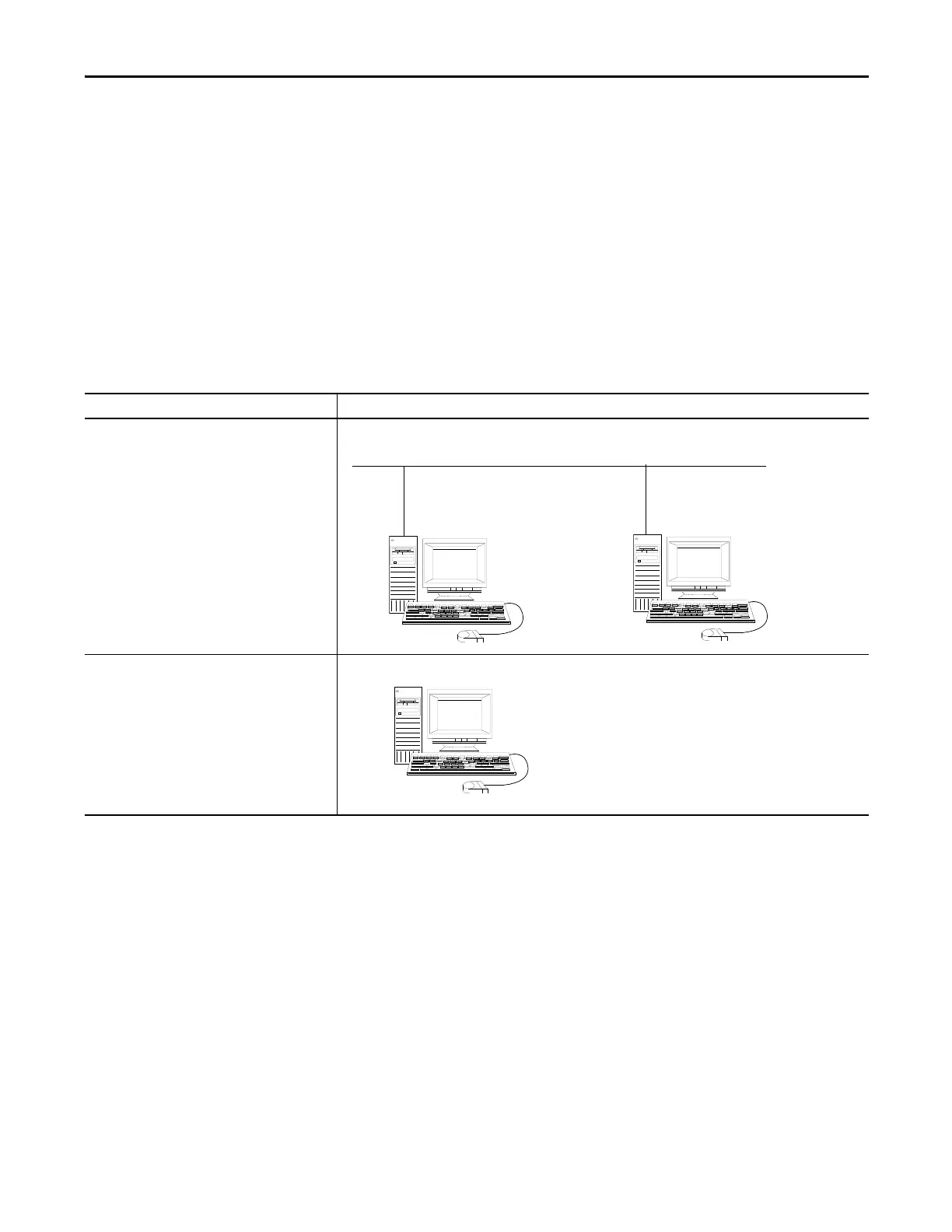

Example Illustration

Each SoftLogix controller resides in its own computer

Each SoftLogix controller resides in the same computer,

by using different CPUs

Soft1

TagA DINT

ControlNet

Soft2

TagB DINT

Soft1

TagA DINT

Soft2

TagB DINT
