76 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 4 Communicate with Serial Devices

Step 1: Configure the Serial Port

Use the SoftLogix Chassis Monitor to choose which COM port to use for serial

communication. The controller supports only one COM port for DF1

communication.

Follow these steps to configure serial communication.

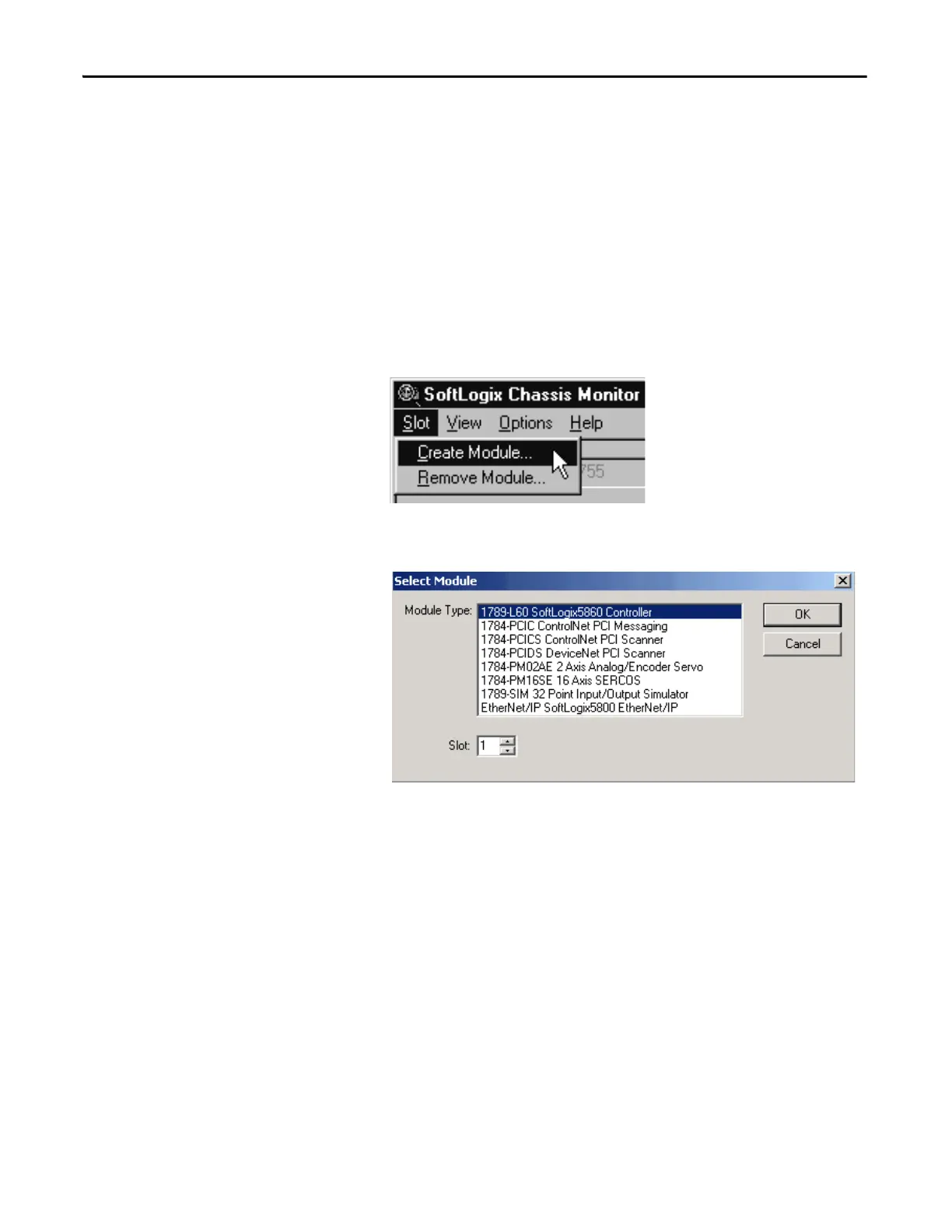

1. In the SoftLogix Chassis Monitor, from the Slot menu, choose

Create Module.

Or right-click the appropriate slot and choose Create.

The Select Module dialog box appears.

2. In the Select Module dialog box, choose the 1789-L60 SoftLogix5860

Controller.

3. Choose the backplane slot number.

For this example, we will choose Slot 1.

4. Click OK.
