90 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Chapter 4 Communicate with Serial Devices

Example 3: SoftLogix

Controller to a Bar Code

Reader

In the following example, the SoftLogix controller connects to a bar code reader.

A bar code reader is an ASCII device, so you configure the serial port differently

than in the previous examples. Configure the serial port for user mode, rather

than a DF1 mode.

Connect the ASCII Device to the Controller

Dp these steps to connect the ASCII device to the serial port of the controller.

1. For the serial port of the ASCII device, determine which pins send signals

and which pins receive signals.

Item Description

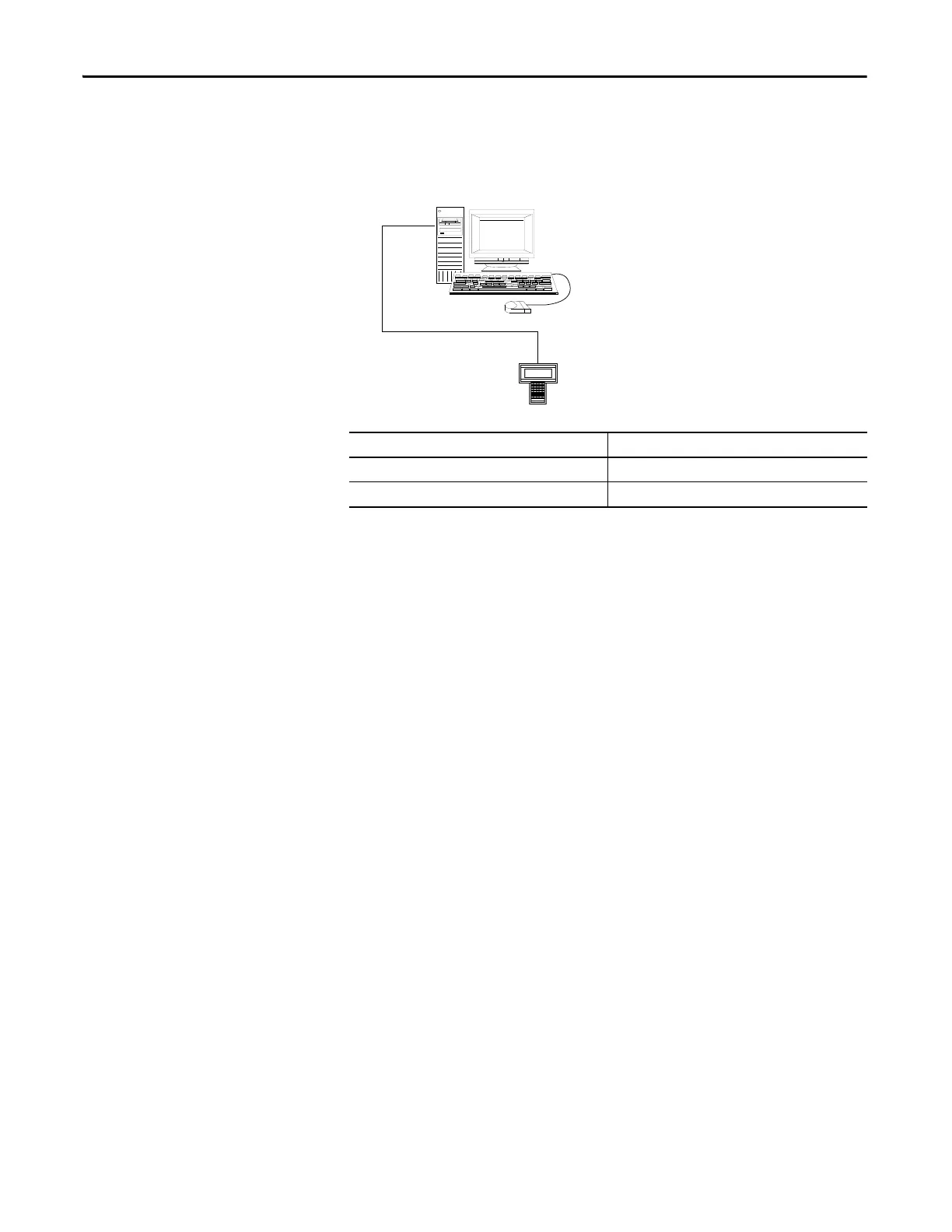

1 SoftLogix controller

2Barcode reader
