Allen-Bradley SoftLogix 5800 User Manual

Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 65
Communicate with Devices on an Ethernet Network Chapter 3

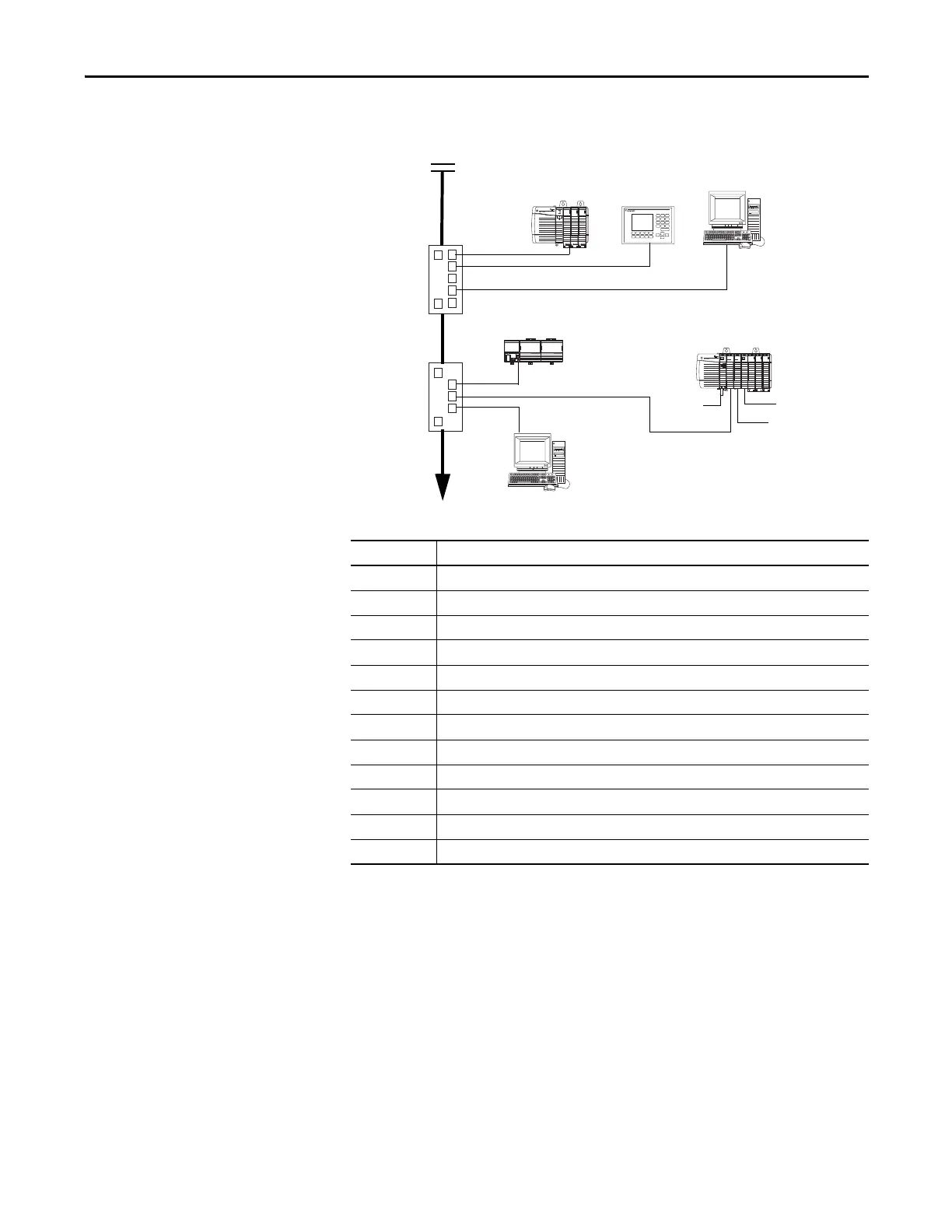

Example 1: Workstation
Remotely Connected to a
SoftLogix Controller
In this example, a workstation remotely connects to a SoftLogix controller over
an Ethernet network to remotely program the SoftLogix controller.
Item Description
1 Ethernet switch
2 Firewall/router
3 ControlLogix chassis with controller and Ethernet module
4 PanelView terminal
5 Personal computer running RSLinx software and the Logix Designer application
6 Ethernet switch
7 FLEX I/O system with Ethernet adapter
8 ControlLogix gateway
9 To ControlNet network
10 To DeviceNet network
11 To DH+ network
12 SoftLogix 5800 controller
2
1
6
9
10
11
3
5
4
7
8
12
