Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 259

Status Indicators Appendix F

SoftLogix EtherNet/IP

Module Status Indicators

This section describes the EtherNet/IP modules’ status indicators for the

SoftLogix system.

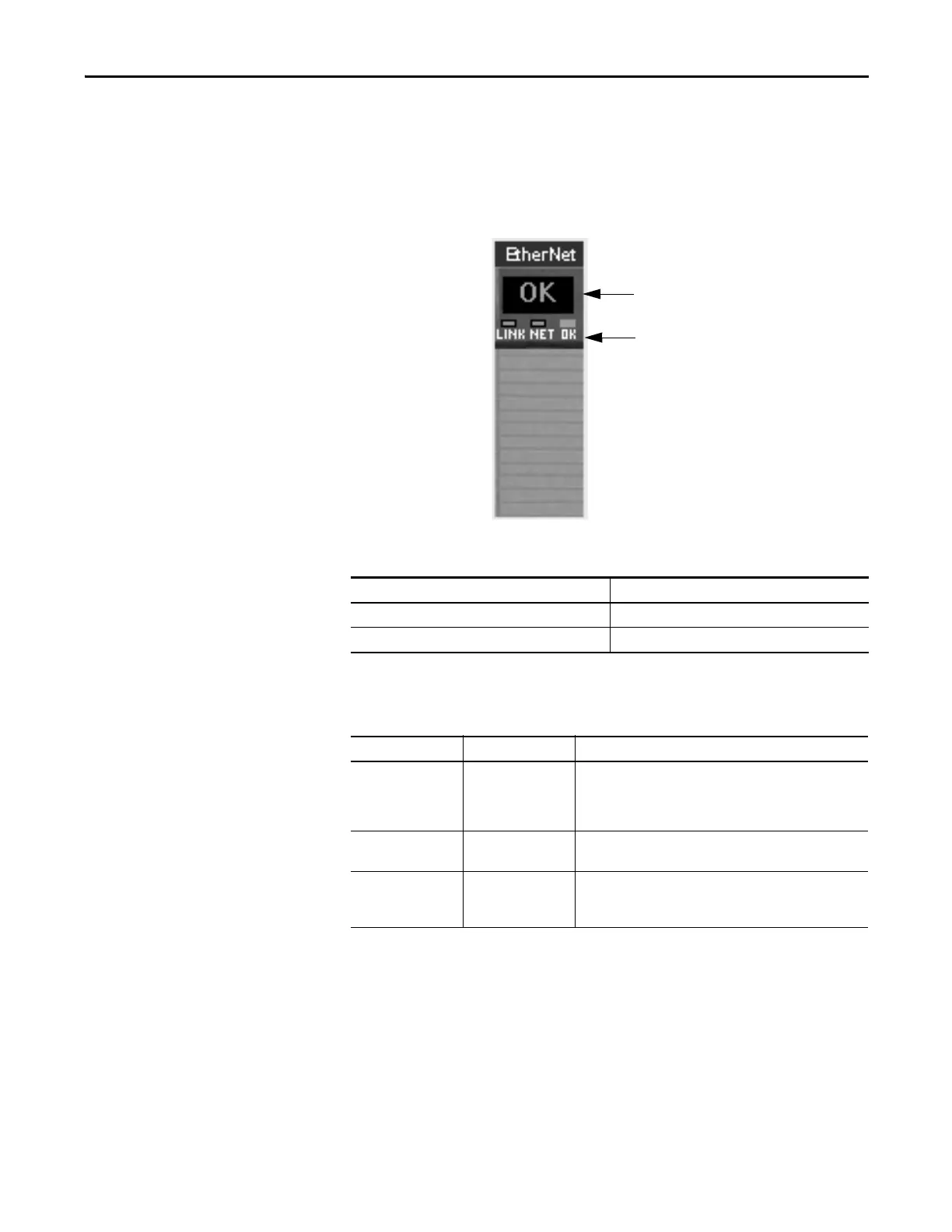

The EtherNet/IP modules have these status indicators.

Link Status (LINK) Indicator

Indicator Description

1 Module display status

2 Module status indicators

LINK Indicator Display Description

Off No link • The module is not connected to a powered Ethernet device.

• The module cannot communicate on Ethernet.Verify that all

Ethernet cables are connected.

• Verify that the Ethernet switch is powered.

Flashing green Data transmission • The module is communicating on Ethernet.

• Normal operation. No action required.

Solid green Link OK • The module is connected to a powered Ethernet device.

• The module can communicate on Ethernet.

• Normal operation. No action required.
