182 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix A Communicate with Devices on a DeviceNet Network

Step 2: Configure the Port

You must configure the port the first time you use a 1784-PCIDS card.

To configure the port, follow these steps.

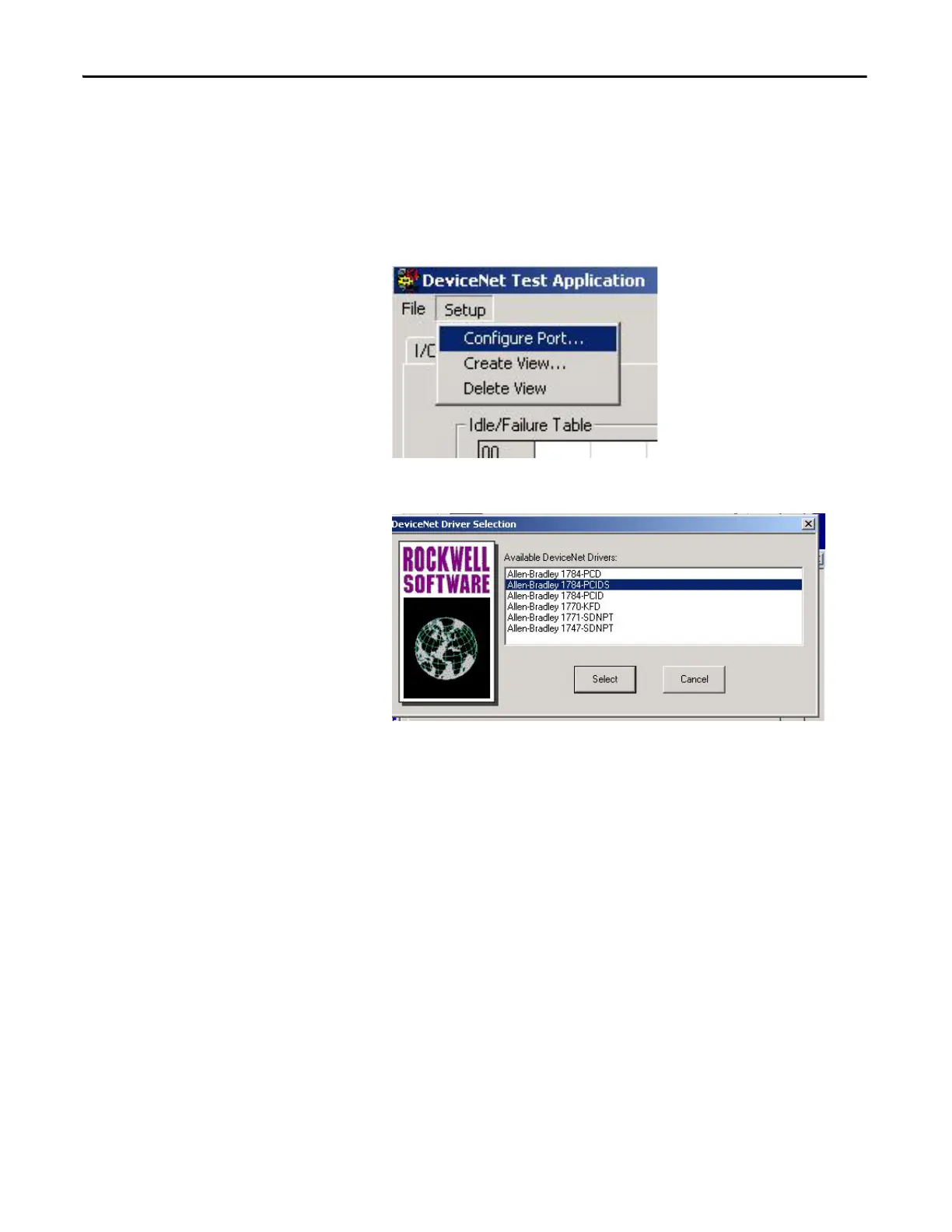

1. From Setup menu, choose Configure Port.

The DeviceNet Driver Selection dialog box appears.

2. Select the Allen-Bradley 1784-PCIDS driver and click Select.
