192 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix A Communicate with Devices on a DeviceNet Network

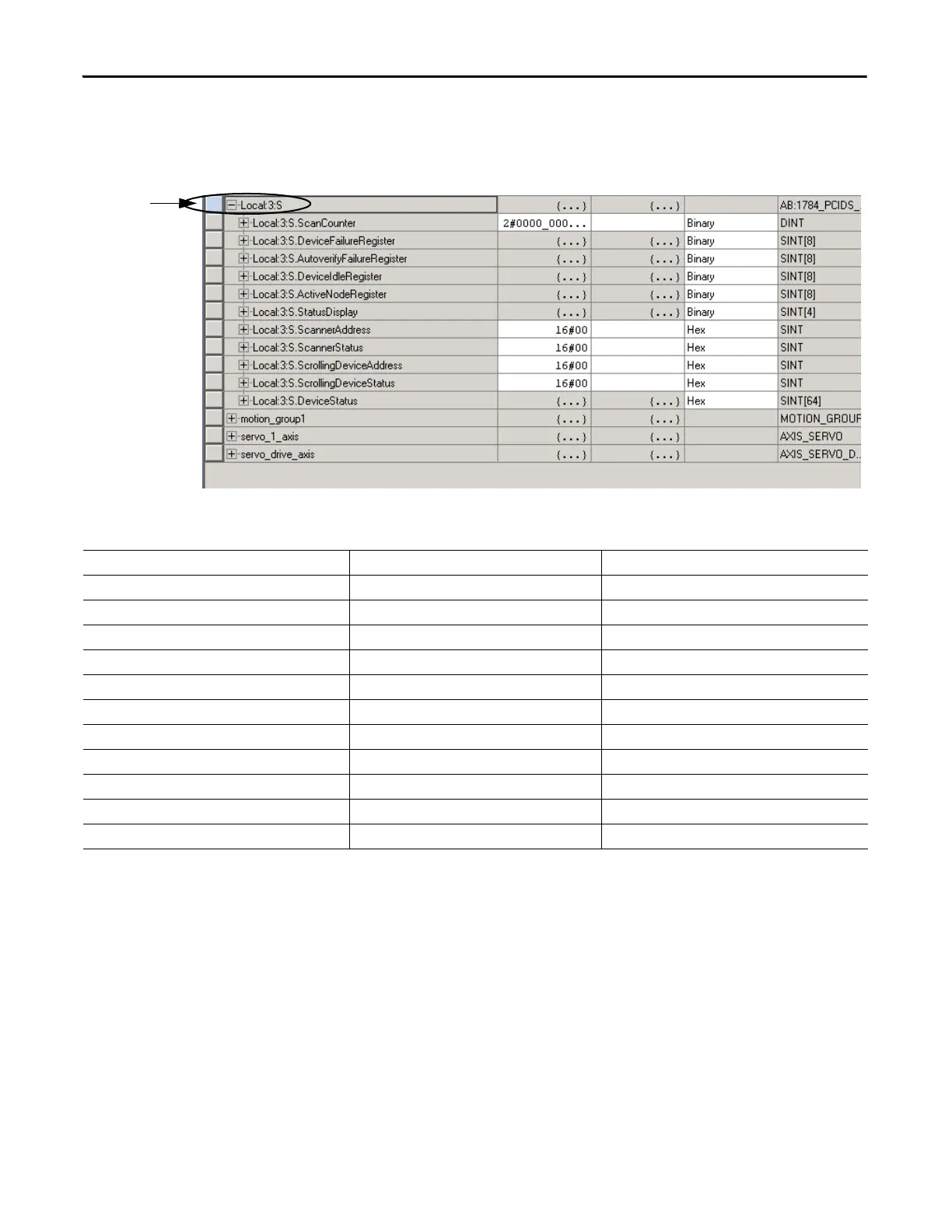

Status Data Elements

The status data for the 1784-PCIDS card includes several elements.

This table describes the status data for a 1784-PCIDS card.

Status Data

Elements

Status Element Data Type Default Display Style

S.ScanCounter DINT Binary

S.DeviceFailureRegister SINT[8] Binary

S.AutoverifyFailureRegister SINT[8] Binary

S.DeviceIdleRegister SINT[8] Binary

S.ActiveNodeRegister SINT[8] Binary

S.StatusDisplay SINT[4] Binary

S.ScannerAddress SINT Hex

S.ScannerStatus SINT Hex

S.ScrollingDeviceAddress SINT Hex

S.ScrollingDeviceStatus SINT Hex

S.DeviceStatus SINT[64] Hex
