Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 19

SoftLogix 5800 System Chapter 1

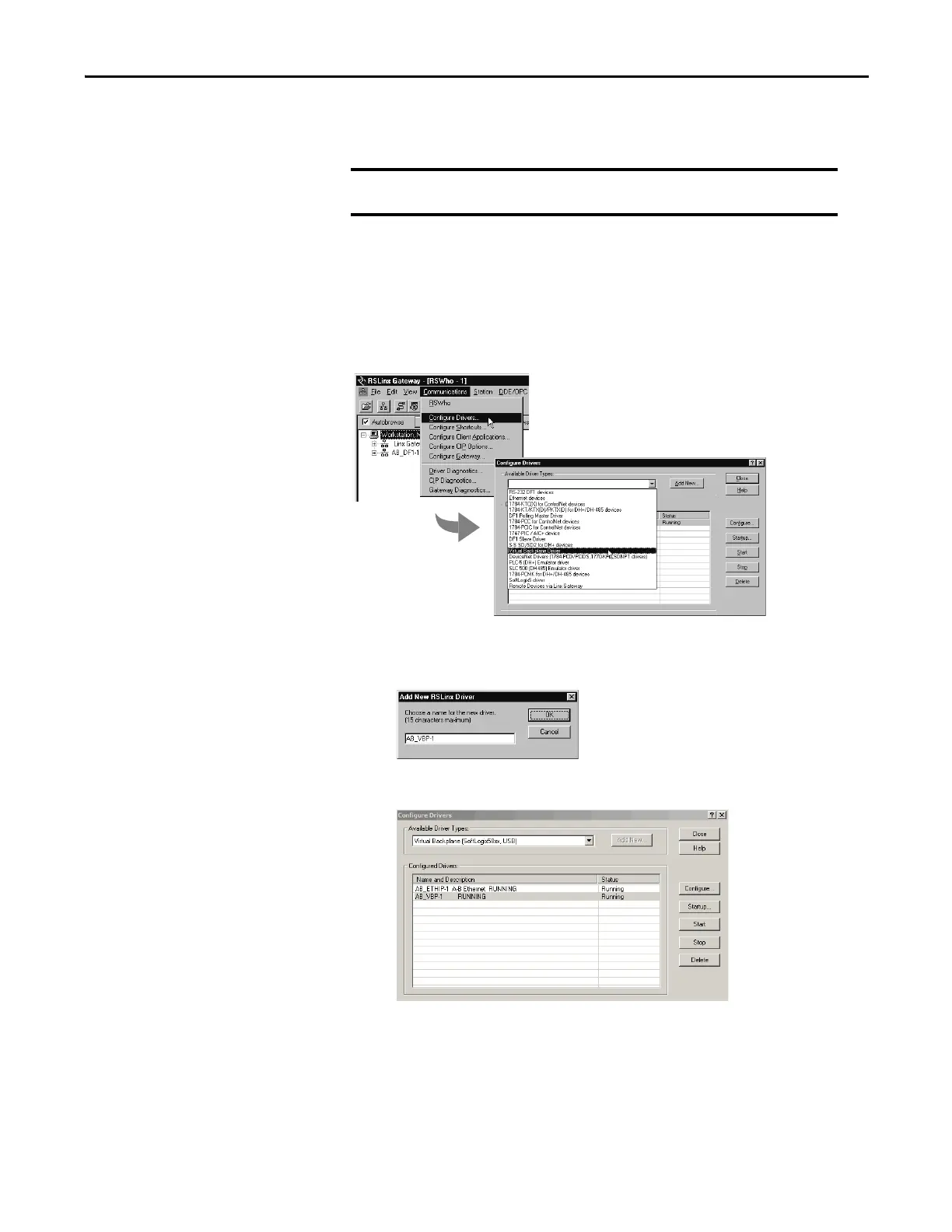

Configure the RSLinx Virtual-

backplane Driver

Use RSLinx software to configure the virtual-backplane driver. You do this only

once for the computer.

To install the virtual-backplane driver, follow these steps.

1. In RSLinx software, from the Communications menu, choose Configure

Drivers.

2. From the Available Driver Type pull-down menu, choose Virtual

Backplane Driver.

3. Click Add New.

4. Type the driver name, such as AB_VBP-1, and click OK.

The Configure Drivers dialog box appears.

IMPORTANT

The RSLinx virtual-backplane driver is required for SoftLogix software

to operate.
