Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 169
Communicate with Devices on a DeviceNet Network Appendix A
Step 4: Configure the Communication Card as Part of the Project
Use RSLogix 5000 software to map the 1784-PCIDS communication card as
part of the SoftLogix project. In the Controller Organizer, add the
communication card to the I/O Configuration folder.
You should already have added the SoftLogix controller to the project.
See Step 1: Create and Configure the Controller in the SoftLogix Chassis
Monitor on page 27,
Your controller is offline.

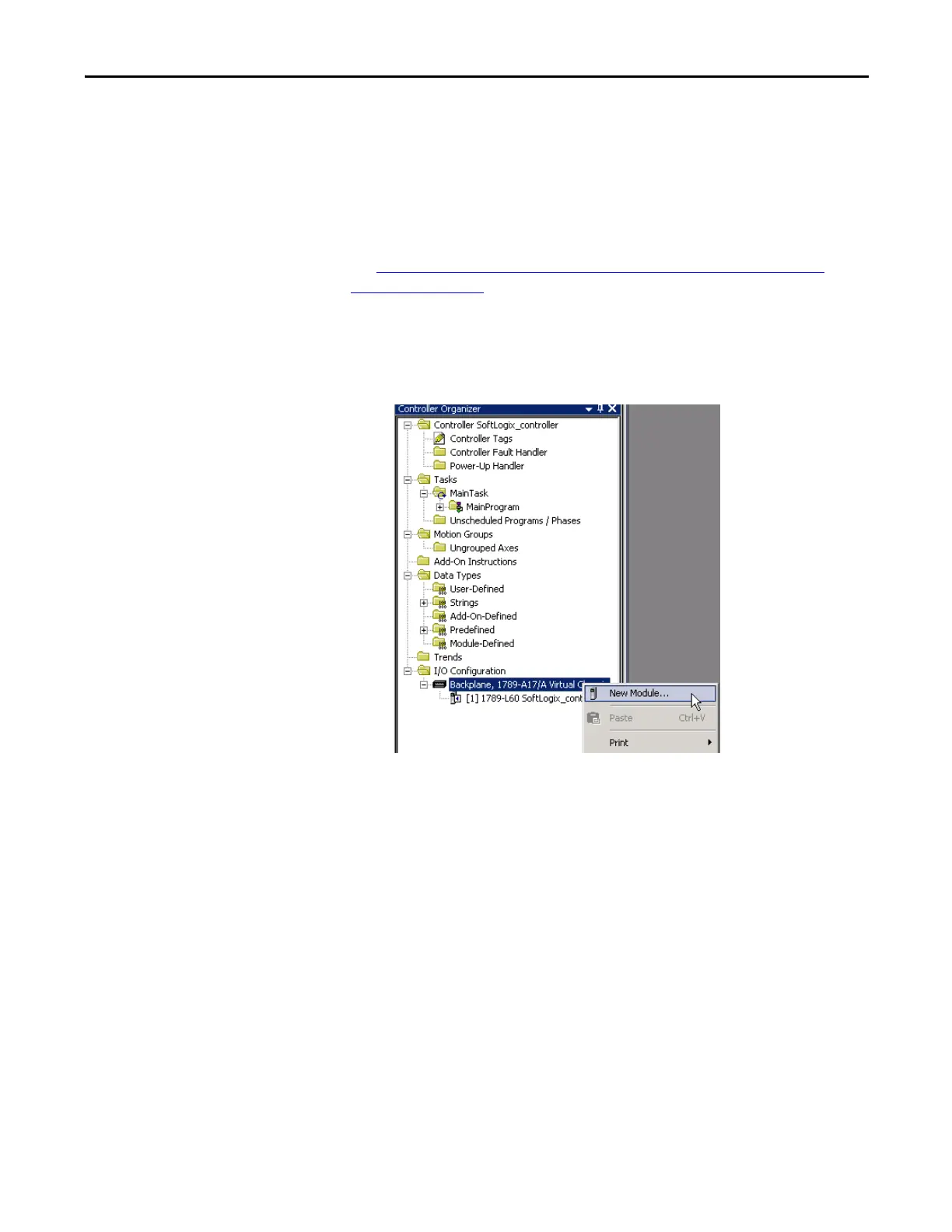

1. In RSLogix 5000 software, right-click the I/O Configuration folder and
choose New Module.
2. Expand the Communications list and select the 1784-PCIDS
communication card.
