168 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015

Appendix A Communicate with Devices on a DeviceNet Network

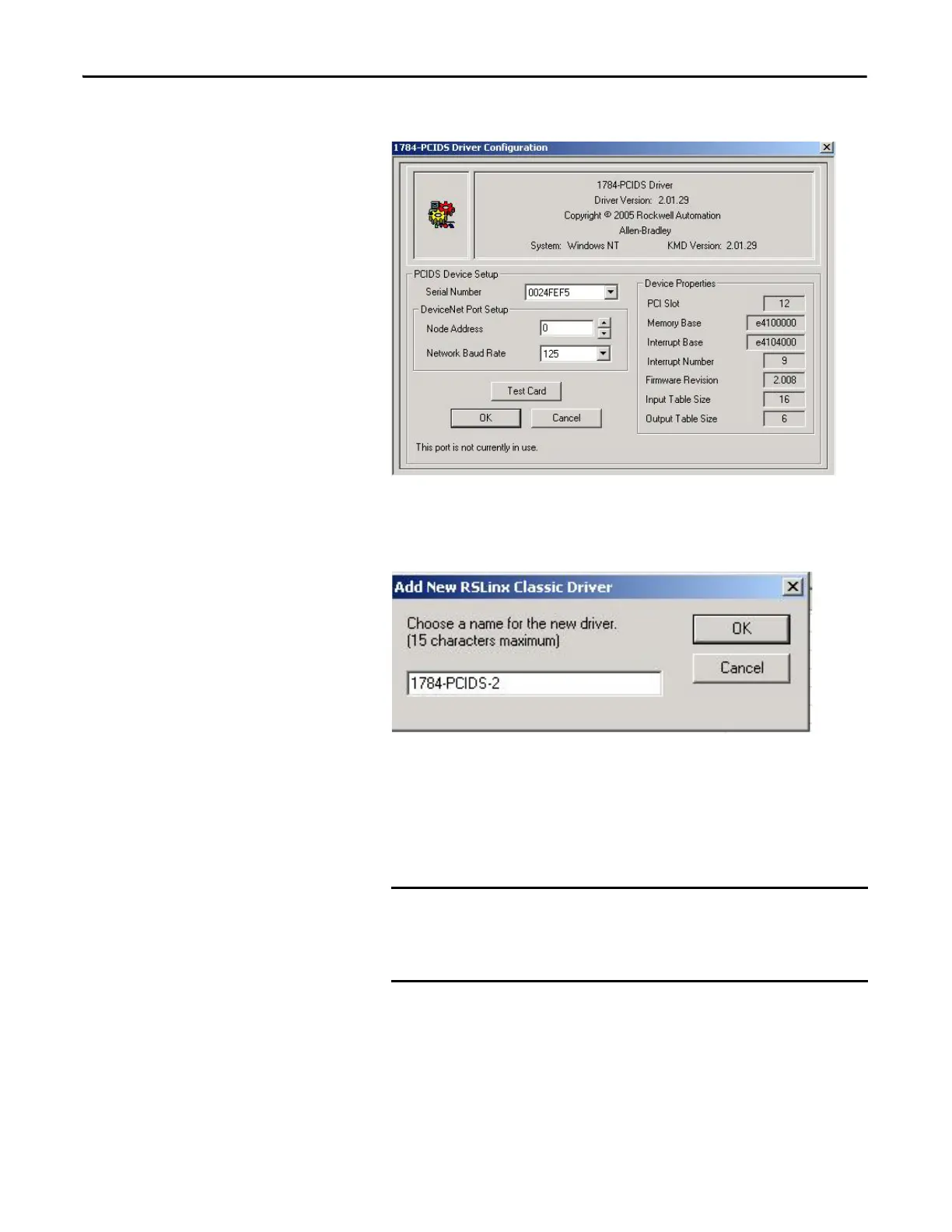

The 1784-PCIDS Driver Configuration dialog box appears.

6. Click OK.

The Add New RSLinx Classic Driver dialog box appears.

7. Name the driver.

8. Click OK.

You will see the driver running.

9. Click Close.

IMPORTANT

You install the DeviceNet communication driver only on the computer

that you use to run RSNetWorx for DeviceNet software. This example

assumes that you are running the SoftLogix controller and

RSNetWorx software on the same computer.
