Allen-Bradley SoftLogix 5800 User Manual

184 Rockwell Automation Publication 1789-UM002K-EN-P - January 2015
Appendix A Communicate with Devices on a DeviceNet Network

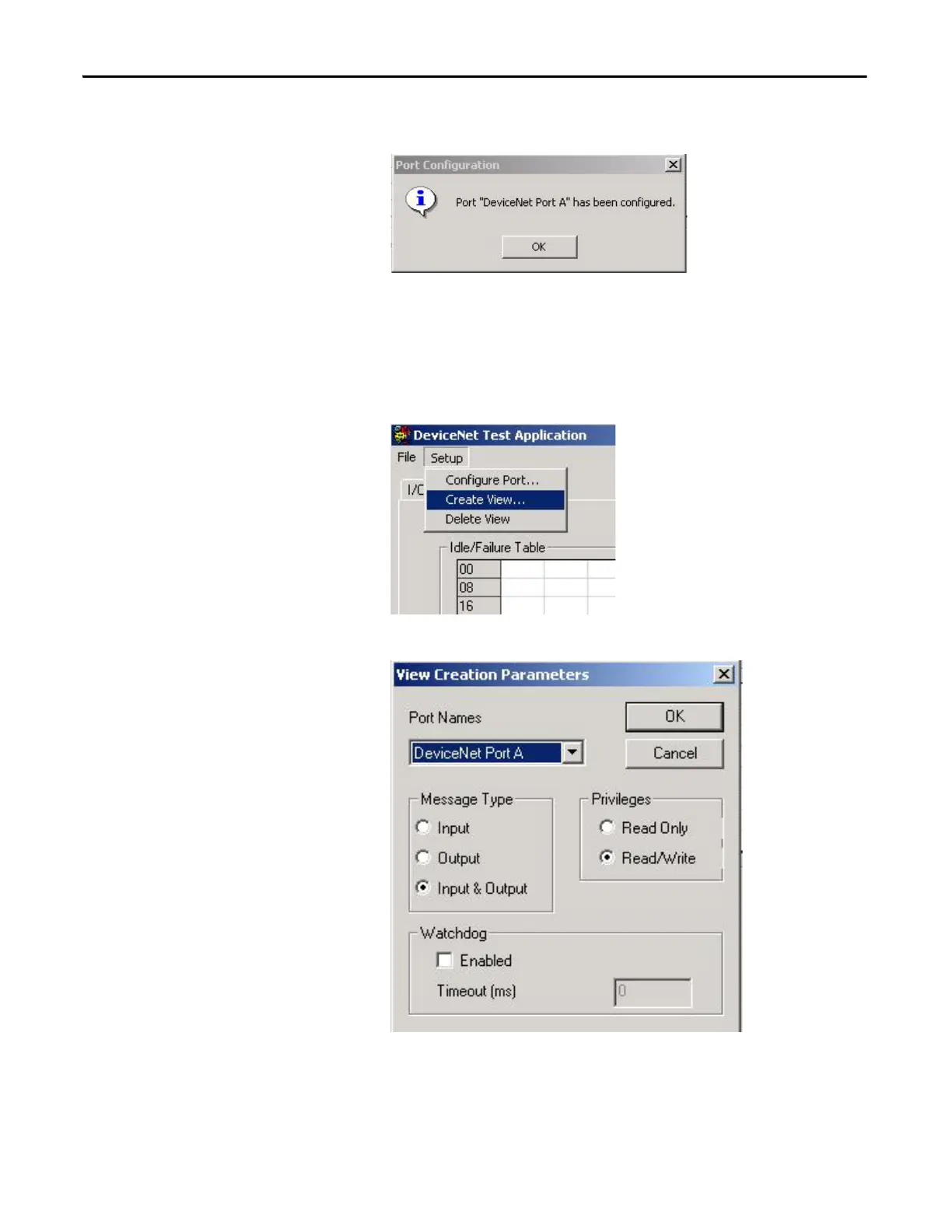

The Port Configuration dialog appears indicating that the port has
been configured.
5. Click OK.
Step 3: Create a View
1. From the Setup menu, choose Create View.
The View Creation Parameters dialog box appears.
2. Choose the port name matching the port for the view you are creating.
3. Click the Message Type (input, output, or input/output) that you want to
use for the view you are creating.
