Rockwell Automation Publication 1789-UM002K-EN-P - January 2015 61

Communicate with Devices on an Ethernet Network Chapter 3

Add a Consumed Tag

A consumed tag’s value comes from a remote controller. The local controller is

the consumer, and the remote controller is the producer. Consumed tags are

always at controller scope.

Complete these steps to add a consumed tag.

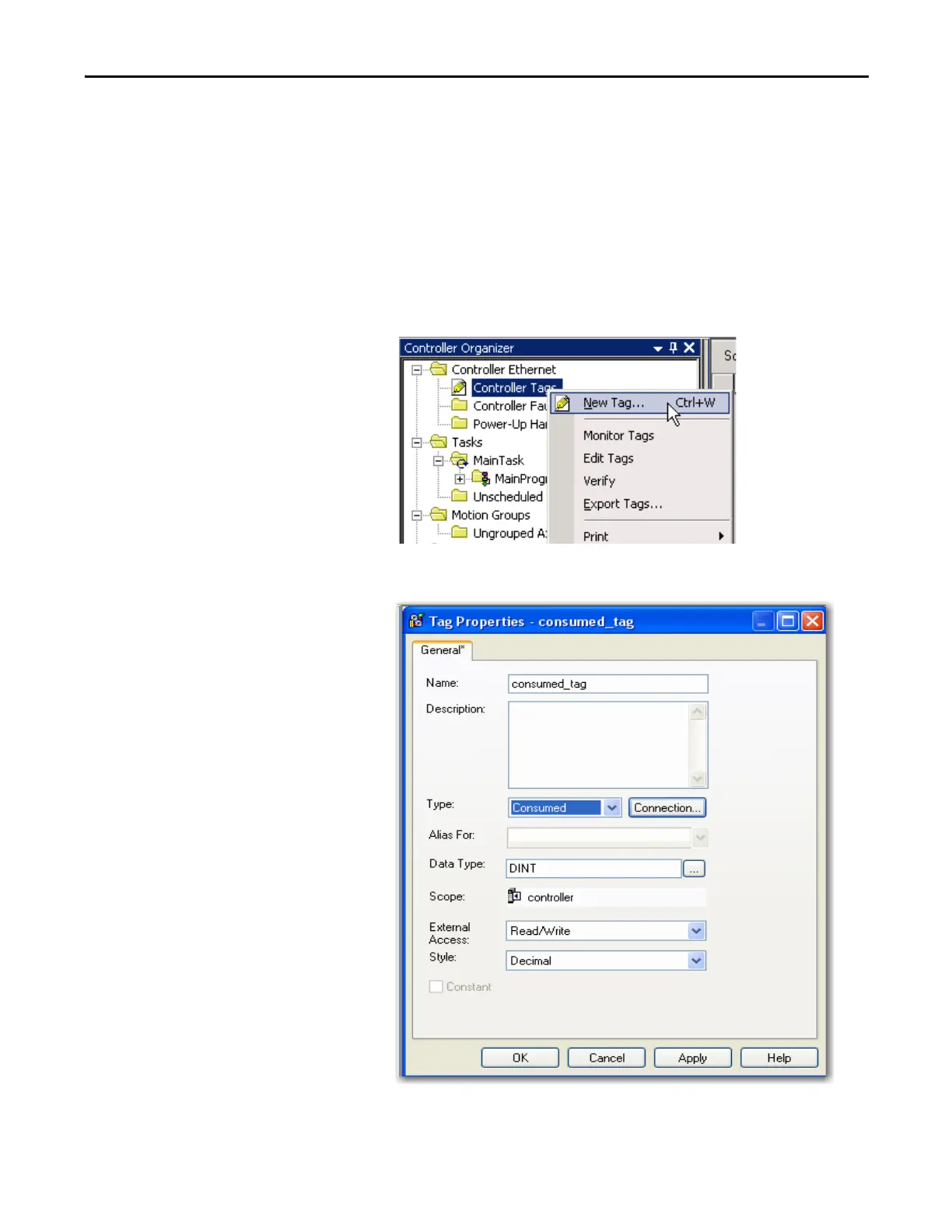

1. On the Controller folder in the Controller Organizer, right-click

Controller Tags and choose New tag.

The New Tag dialog box appears.
